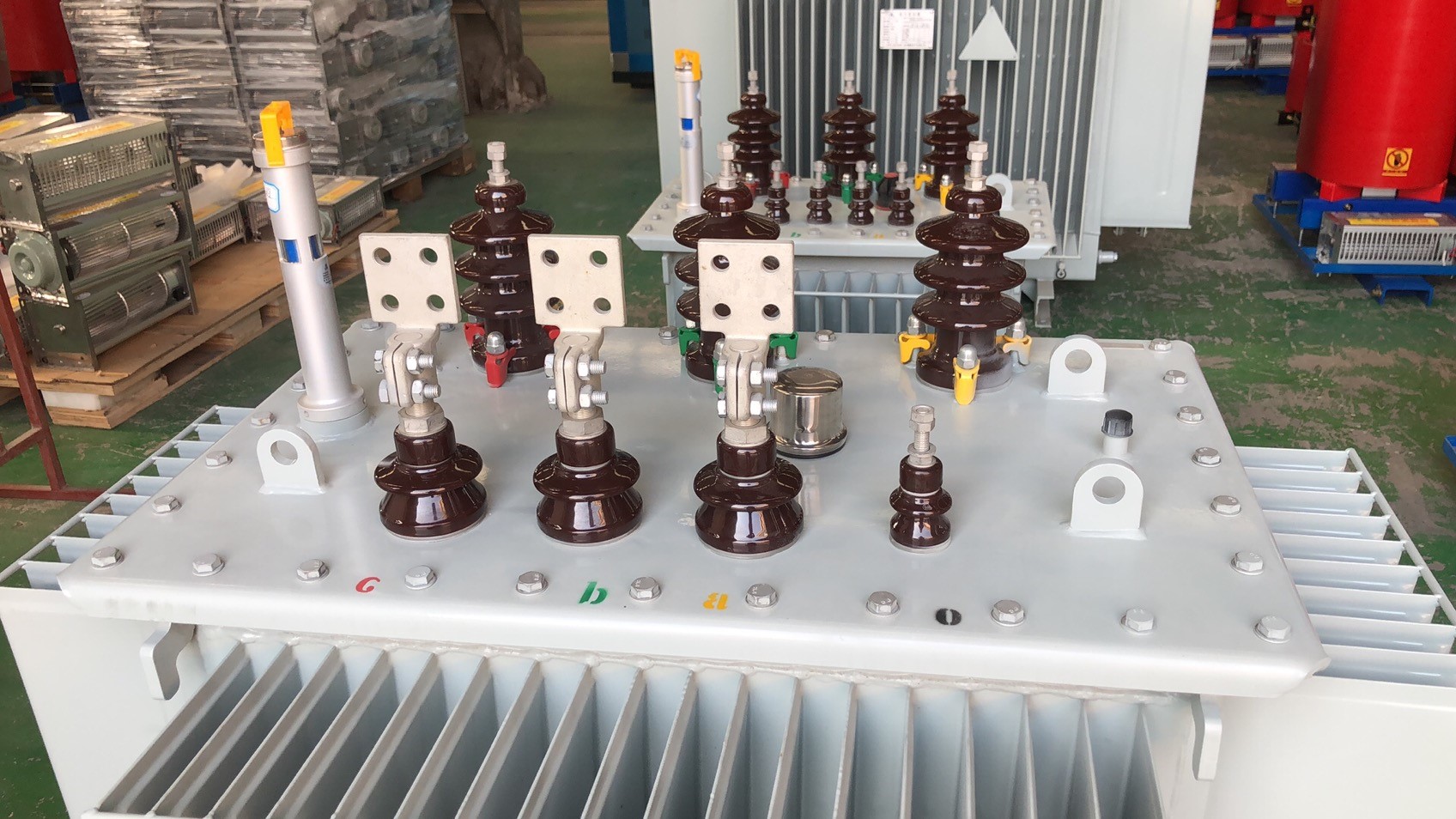

S13-500KVA Oil Immersed Power Transformer

Release time:2020-07-08

Model name:S13-M
No load loss:480
Capacity:500KVA
Voltage:4%
Material:copper

Product details

S13-500KVA Oil Immersed Power Transformer
S13-500KVA Oil Immersed Power Transformer
S13-500KVA Oil Immersed Power Transformer
S13-500KVA Oil Immersed Power Transformer

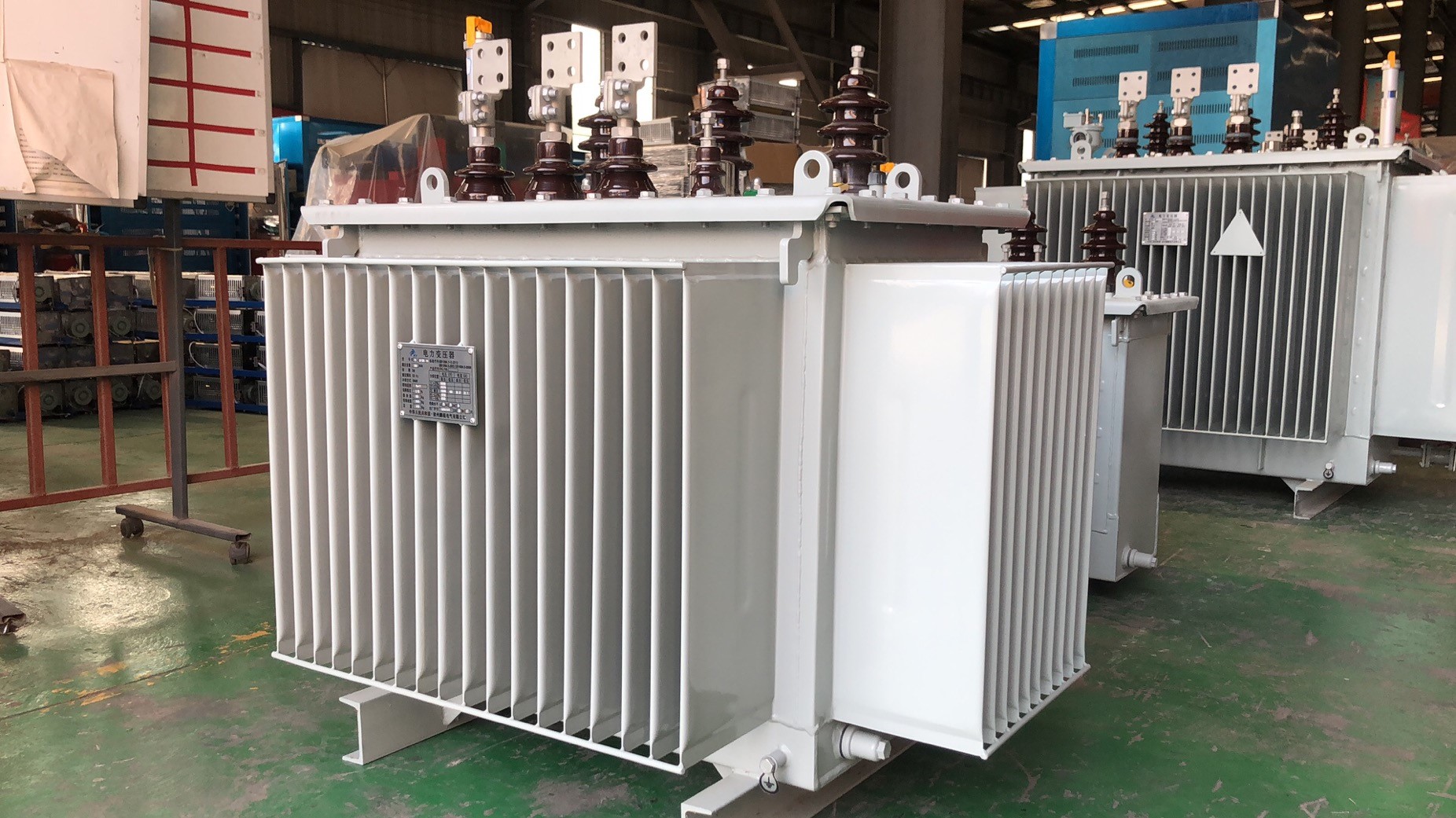

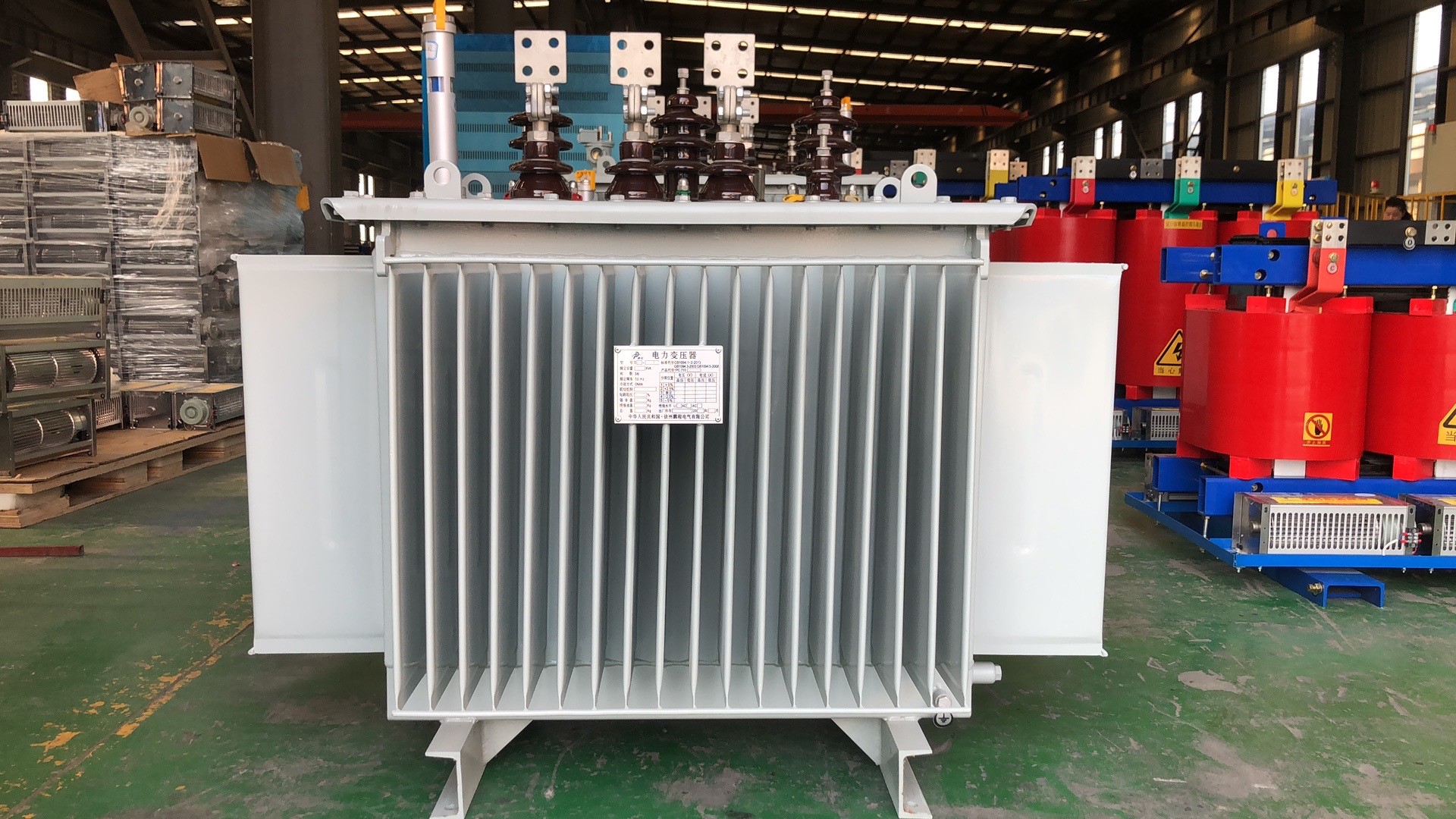

S13-M-500KVA Copper Oil Power Transformer

■Product Overview

S13-M-500KVA oil-immersed transformer is based on the original S11 oil-immersed transformer, through the research and application of new materials, new technology and the combination of independent innovation and technology introduction, through the optimization of the core and coil structure of the innovative design, to achieve the reduction of no-load loss and noise of the purpose of independent development of the product.

No-load loss has decreased by 37% on average. Noise level compared with the current national standard JB/T10088-2004 decreased by 20% on average, the product performance level has reached the domestic advanced level.

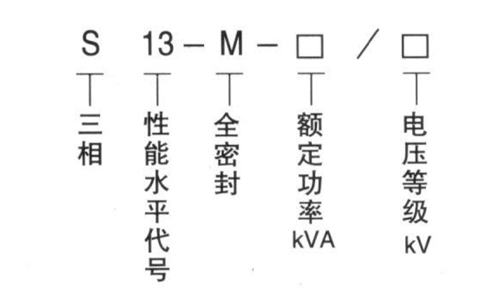

■Model Meaning

S13-500KVA Oil Power Transformer
