SH15-M-200KVA Amorphous alloy transformer

Release time:2020-07-14

Model name:SH15-200KVA
No load loss:120W
Capacity:200KVA
Voltage:4.0%
Material:copper

Product details

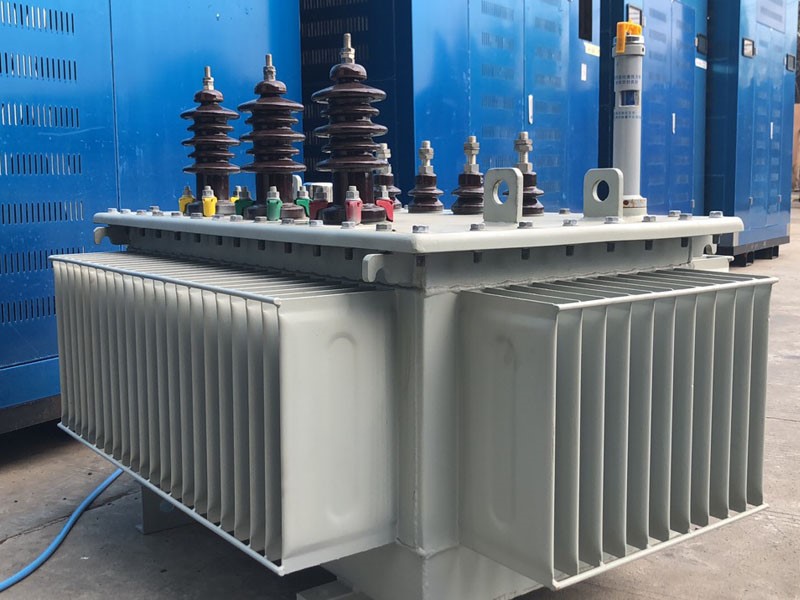

SH15-M-200KVA Amorphous alloy transformer

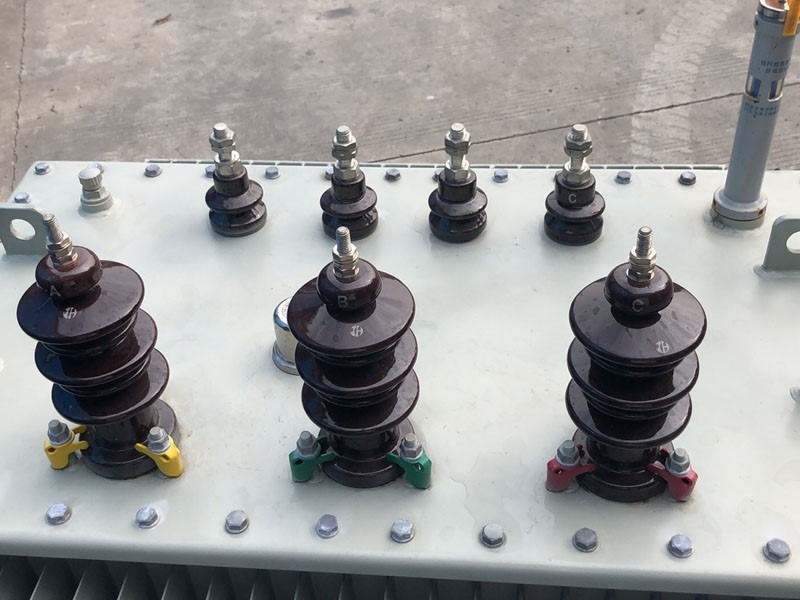

SH15-M-200KVA Amorphous alloy transformer

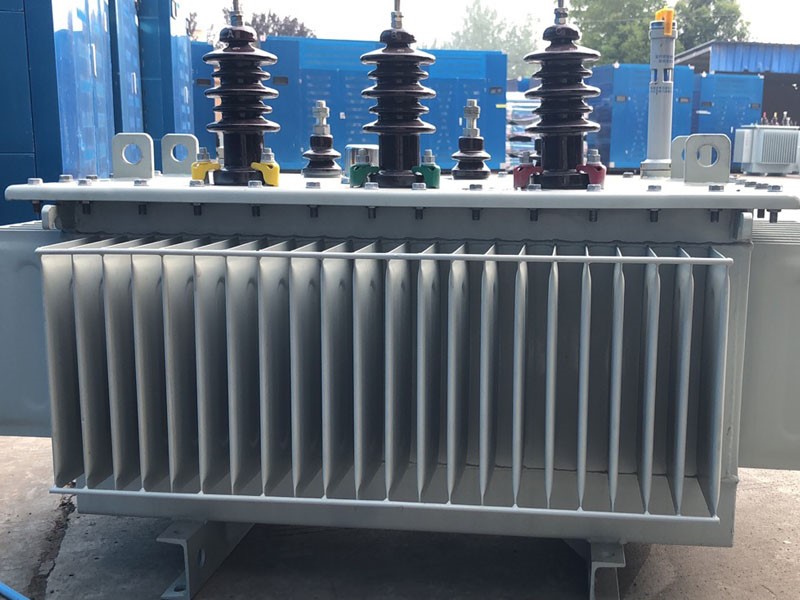

SH15-M-200KVA Amorphous alloy transformer

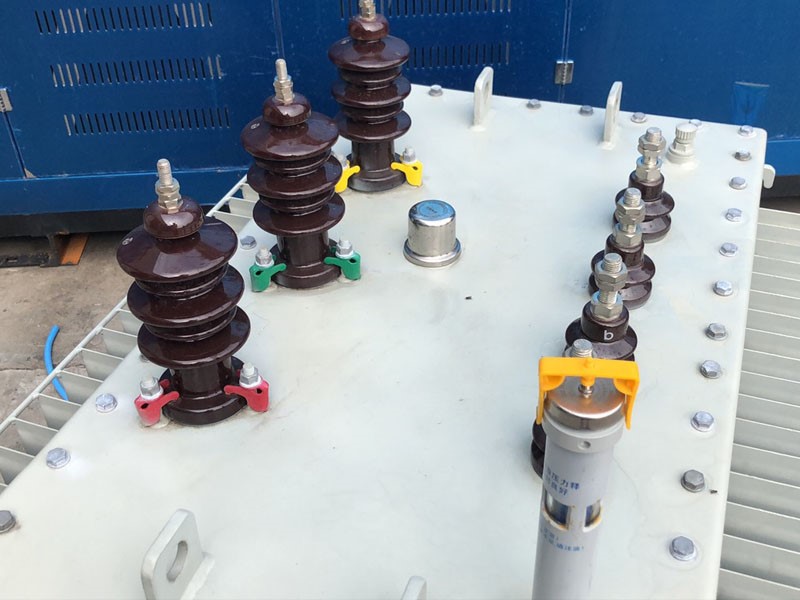

SH15-M-200KVA Amorphous alloy transformer

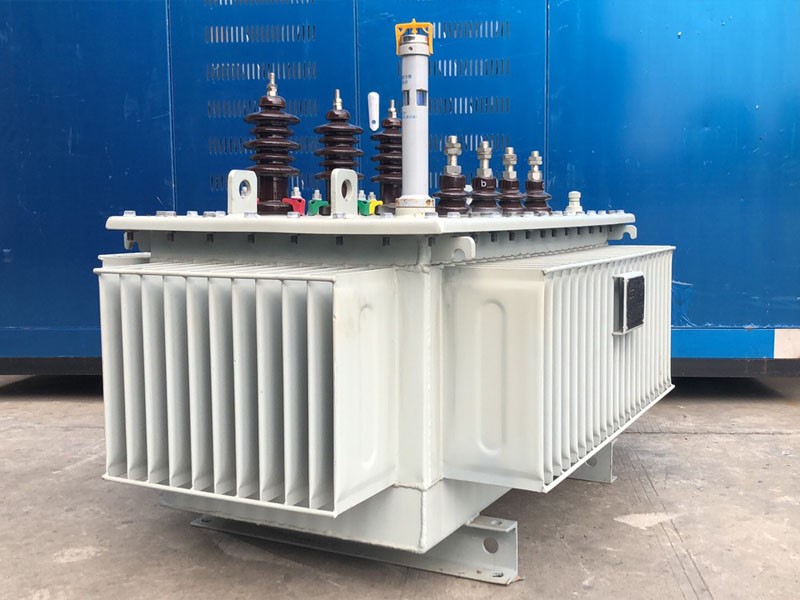

SH15-M-200KVA Amorphous alloy transformer
SH15-M-200KVA Amorphous alloy transformer

■Product Overview:

SH15-M-200KVA amorphous alloy transformer is oil-filled sealed type. The principle is the same as the sealed power transformer. Amorphous alloy base elements are iron, nickel, cobalt, silicon, boron, carbon and other components. Is a kind of isotropic soft magnetic material, magnetization power is small, there is no obstacle to the domain wall movement of the structural defects, the thickness is thin, only 0.027mm, the filling coefficient accordingly become small, only 0.75 ~ 0.8, high resistivity, is 3 ~ 6 times the silicon steel plate, the hardness is 5 times the silicon steel sheet, amorphous alloy material is particularly sensitive to stress.

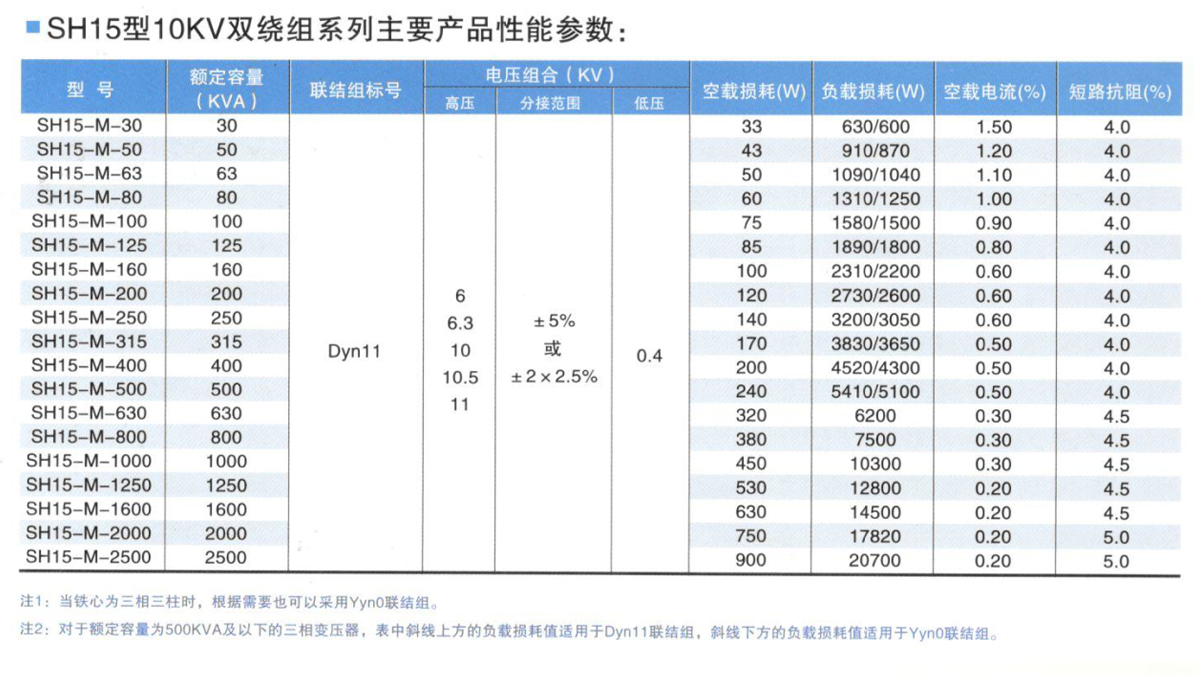

SH15-M-30~2500/6~10 series products, no-load loss in GB/T6541 standard value based on 70% reduction. Implementation standard GB/T25446-2010 "oil-immersed amorphous alloy core distribution transformer technical parameters".

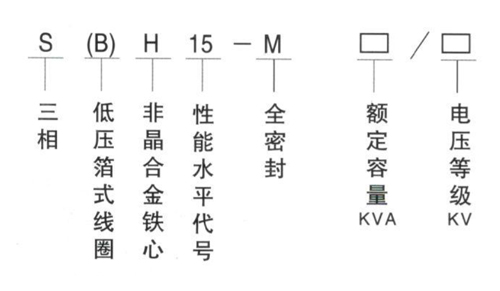

■Model Meaning:

SBH15-M-200KVA Amorphous alloy transformer
