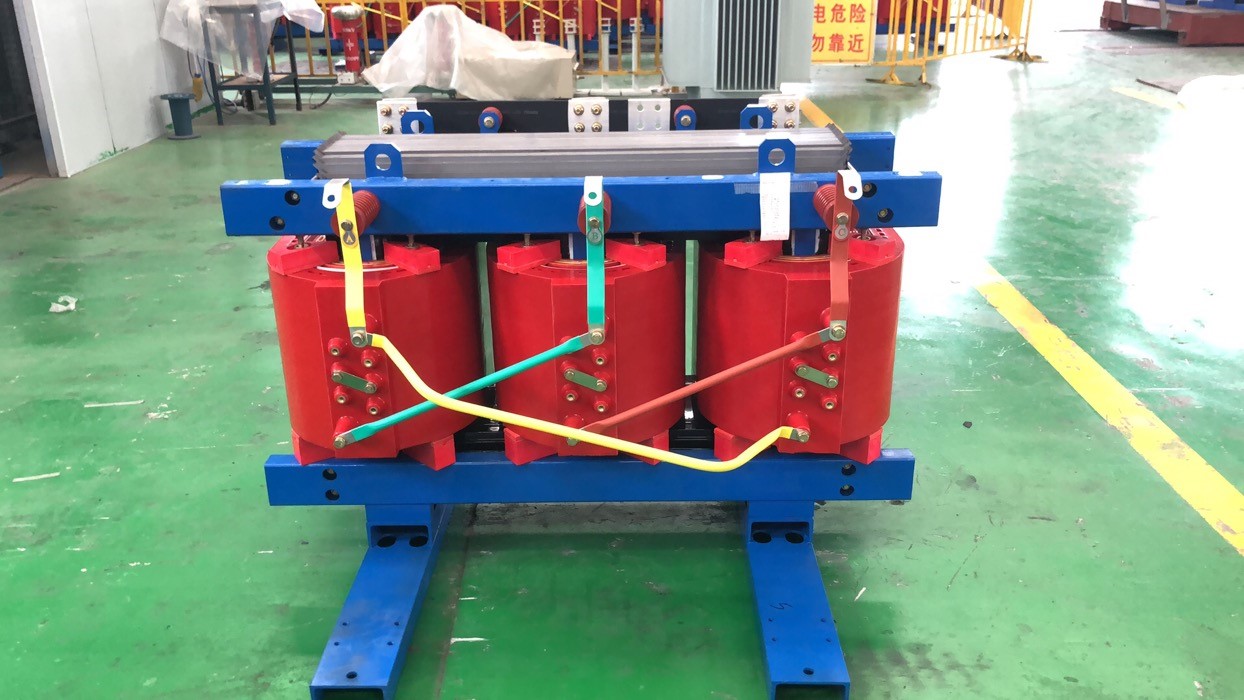

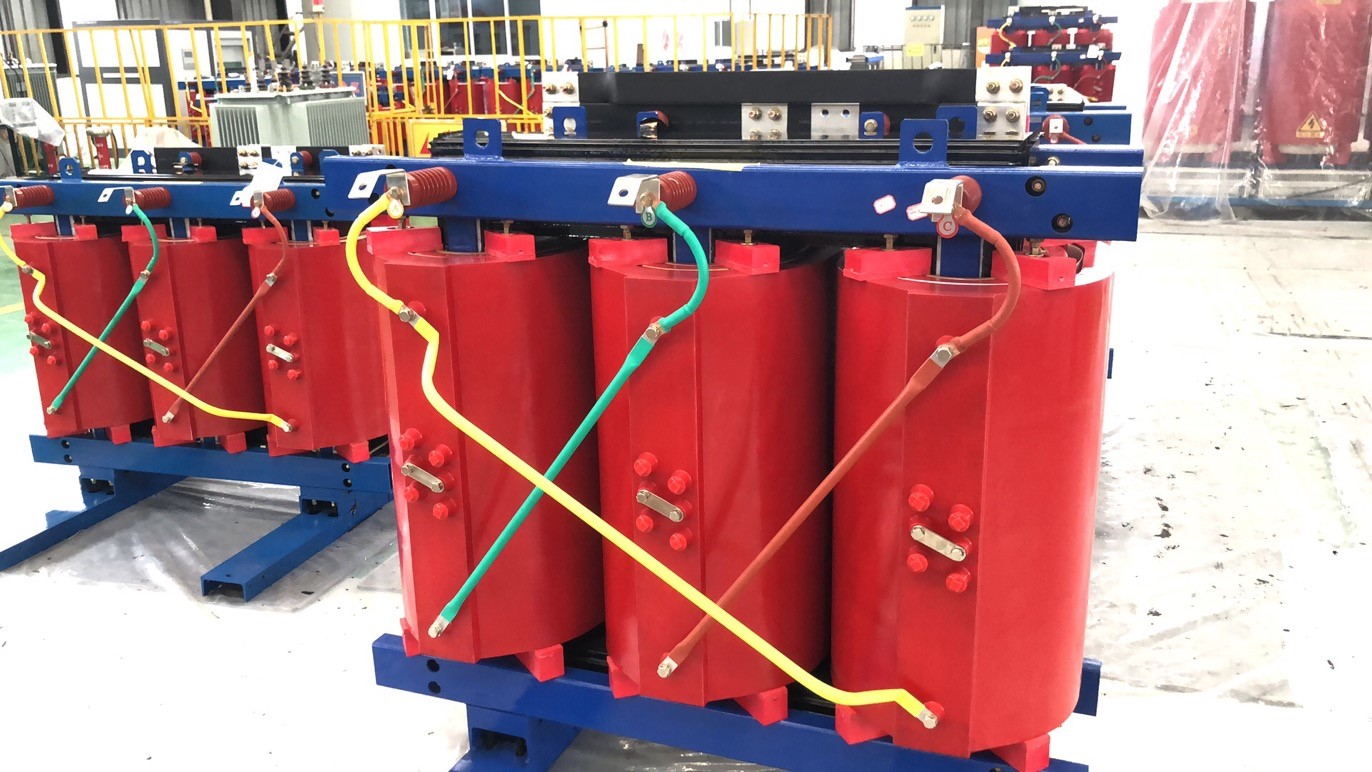

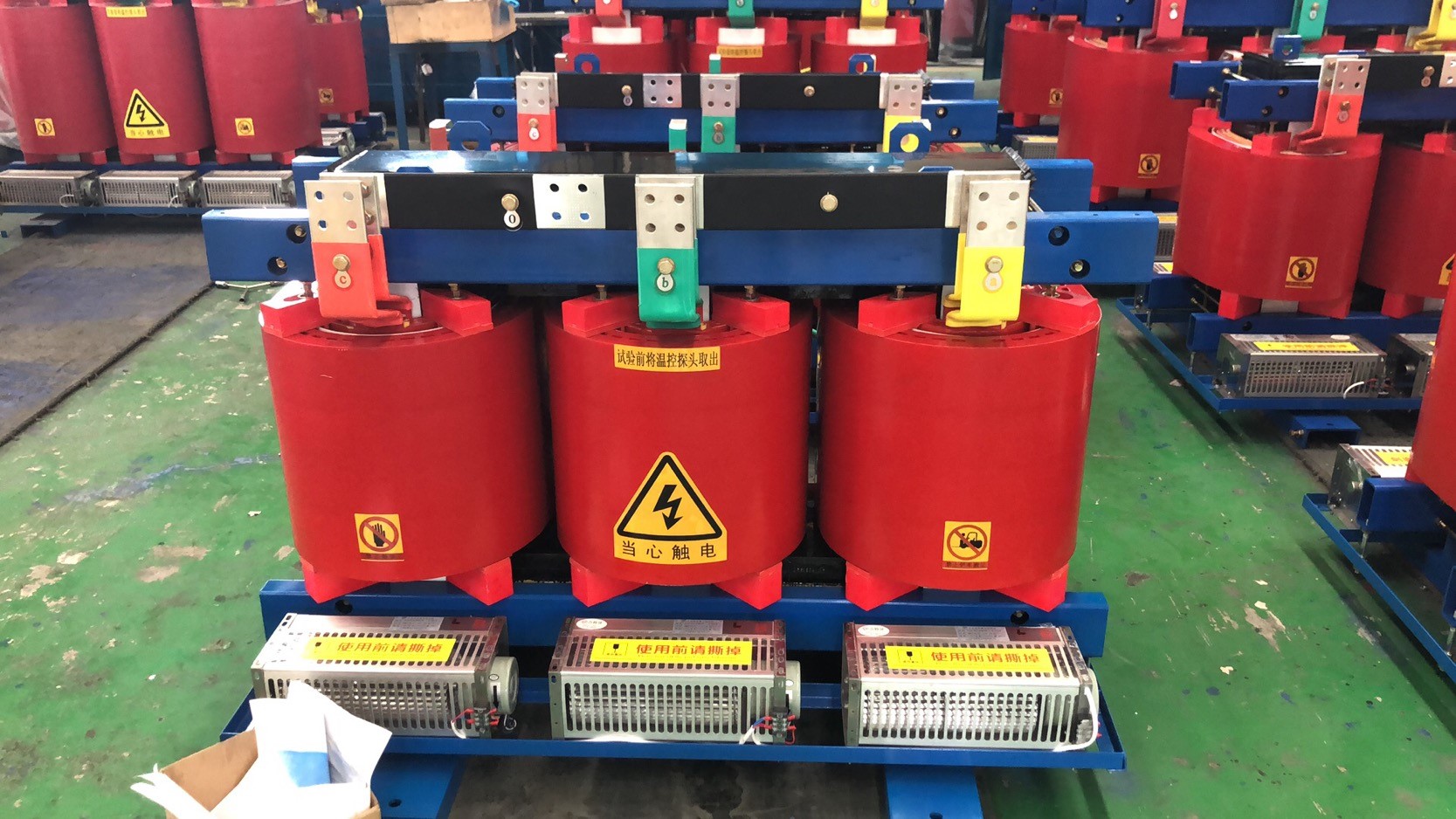

SCB11 Dry Type Transformer

■Product Overview:

We produces the dry-type transformer its performance index load standards, the user has proved that the operation is reliable, to reach the national advanced level. This series of products adopts foreign advanced manufacturing technology, design drawings and technical documents are complete, correct, clear, advanced production equipment, stable manufacturing process, measurement means complete, for the production of high-quality products to provide a solid guarantee.

■Product Usage:

SCB11 dry-type transformer according to the standard "Dry-type Power Transformer" manufacturing, this product performance loss is low, energy saving effect is good, running economy, maintenance-free. In addition to the advanced process structure, high level of resistance to short circuit, lightning impact, but also has a flame retardant, moisture-proof, dust-proof, low noise and other characteristics, can be deep in the middle of the load. Widely used in high-rise buildings, airports, stations, docks, power plants, substations and so on. It is especially suitable for installation in places with high fire protection requirements such as flammable and explosive.

We company produces the standard dry-type transformer without shell, protection level for IP0O, such as customer needs can provide protection level for IP20 and IP23 shell. Shell can be selected according to customer requirements of ordinary steel plate, stainless steel plate, aluminum alloy and other materials, and for pickling, phosphating, plastic spraying and other treatments. Temperature control display meter and load measuring and recording meter are installed in the low pressure side of the shell, which is convenient for users to observe, stable and reliable.

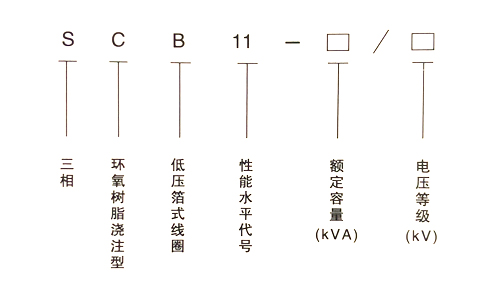

■Model Meaning:

■Product Parameters:

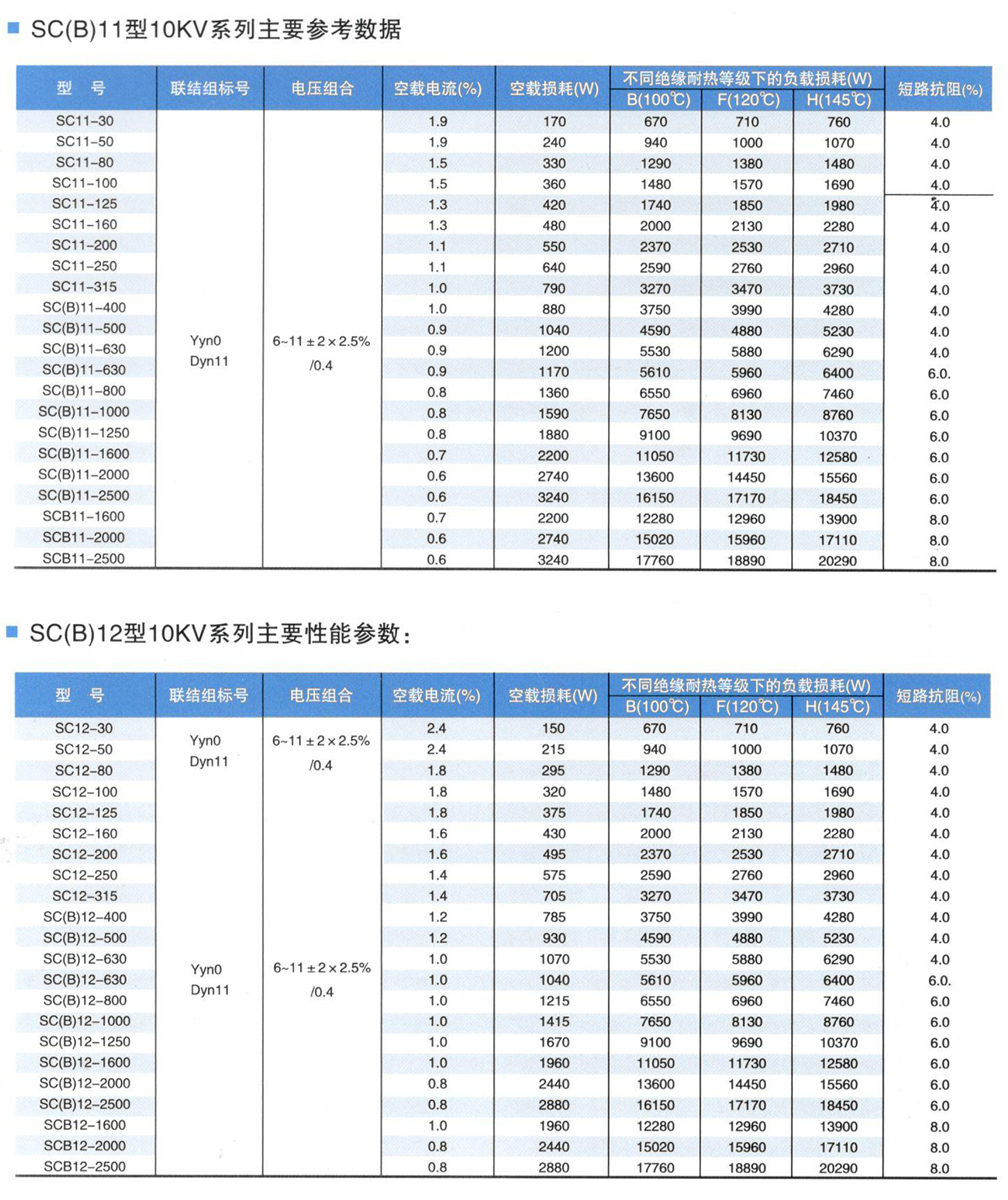

SCB10 Dry-type Transformer main performance parameters see table

Number of phases: 3-phase

Frequency: 50Hz

Insulation heat-resistant grade: F class

Average temperature rise of the winding: ≤ 100K

Partial discharge: less than 5pc
