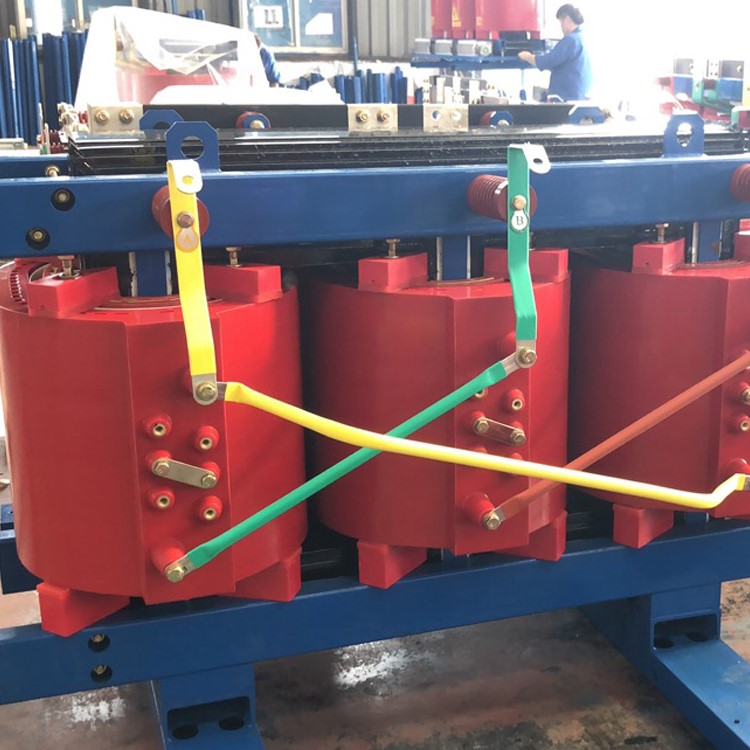

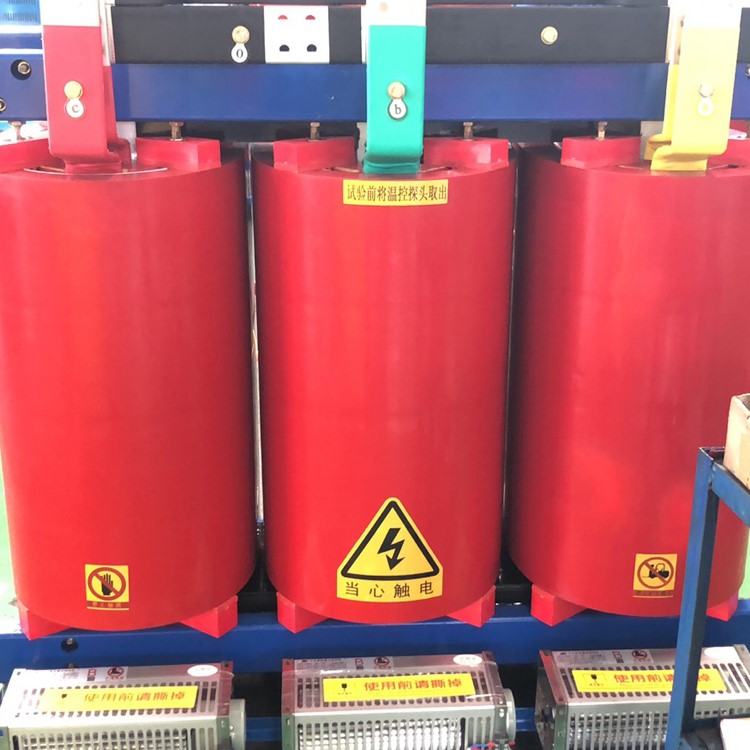

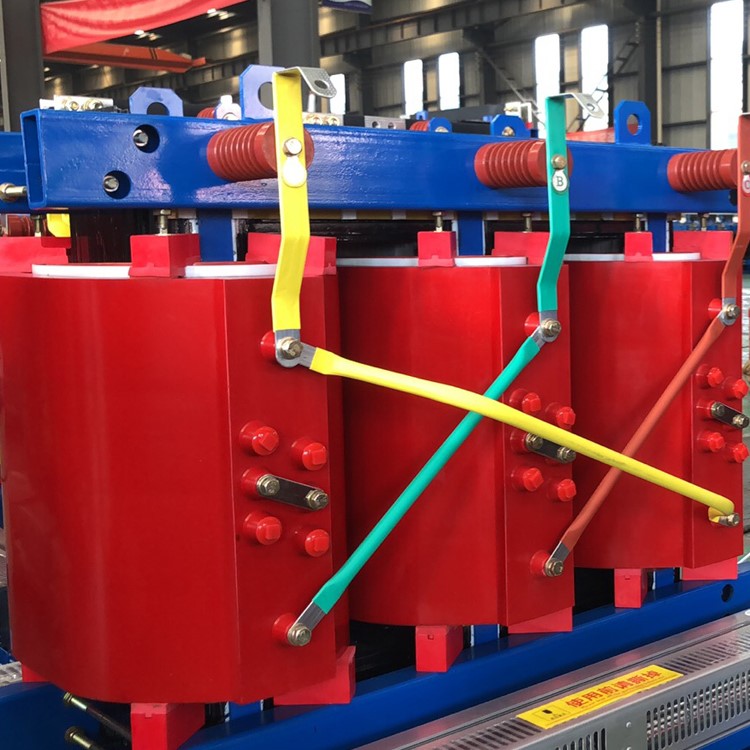

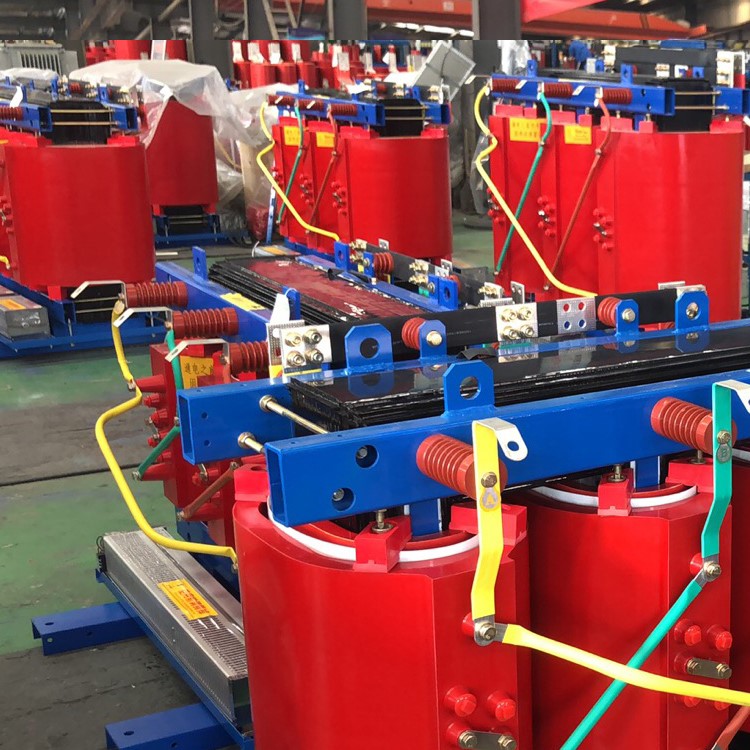

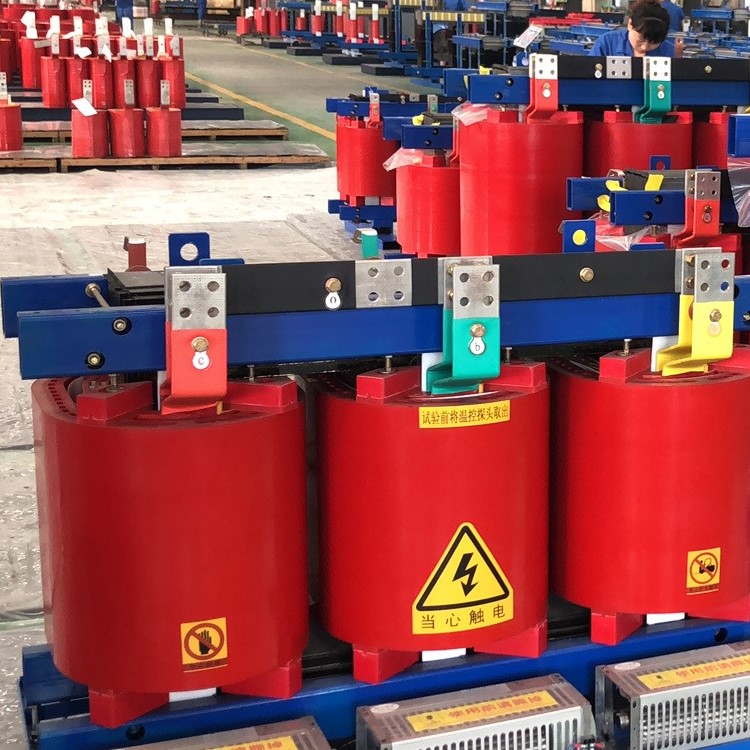

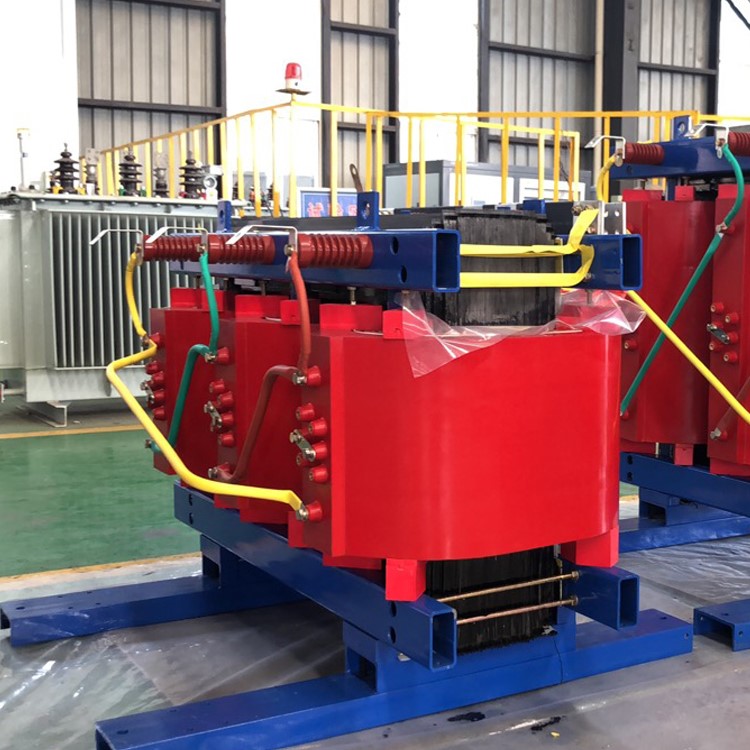

630kva-scb10 Dry Type Transformer

■Product Usage:

scb10 dry-type transformer according to the standard "dry-type power transformer" manufacturing, this product performance loss is low, energy saving effect is good, running economy, maintenance-free. In addition to advanced process structure, high level of resistance to short-circuit, lightning impact, but also has the characteristics of blocking, moisture-proof, dust-proof, low noise, etc., can be deep load. Widely used in high-rise buildings, airports, stations, docks, power plants, substations, etc.. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.

本公司生产的标准型干式变压器为不带外壳，防护等级为IP00，如客户需要可提供防护等级为IP20和IP23的外壳。外壳可根据客户要求选用普通钢板、不锈钢板、铝合金等材料制作，并作酸洗、磷化、喷塑等处理。温度控制显示仪、负荷测录仪安装在外壳低压侧，方便用户观察，可靠。

■Product Parameters

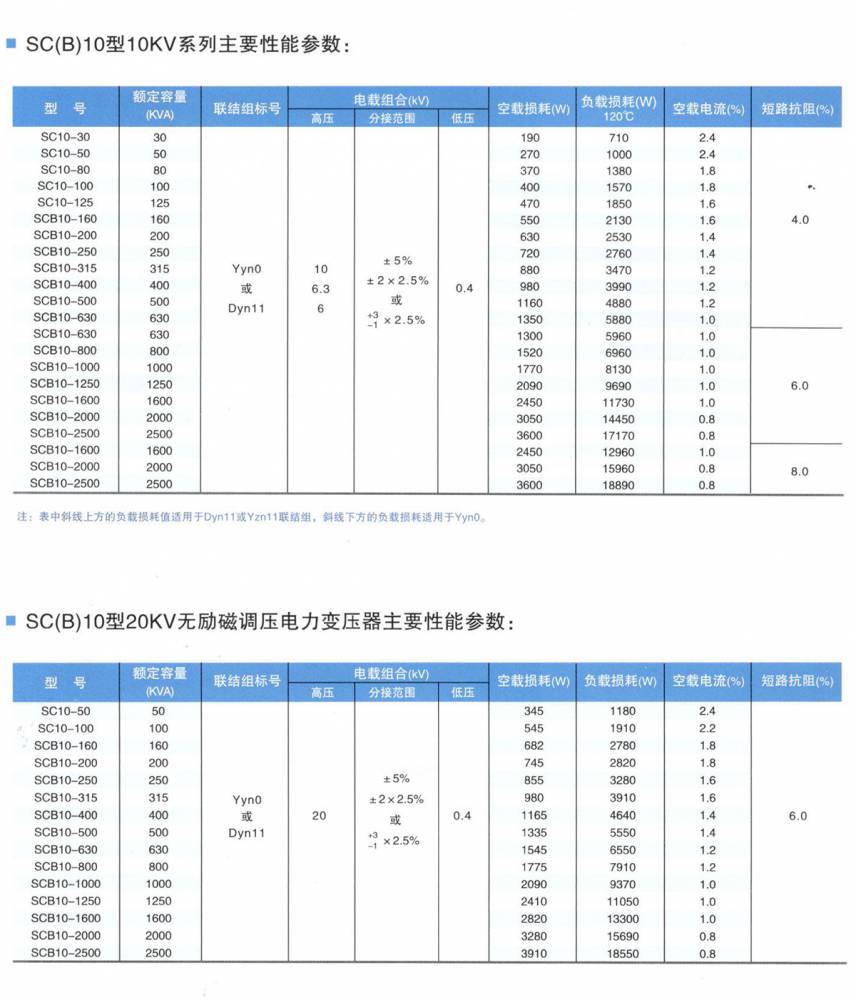

SCB10 Dry-type Transformer main performance parameters see table

Number of phases: 3-phase

Frequency: 50Hz

Insulation heat-resistant grade: F class

Average temperature rise of the winding: ≤ 100K

Partial discharge: less than 5pc
