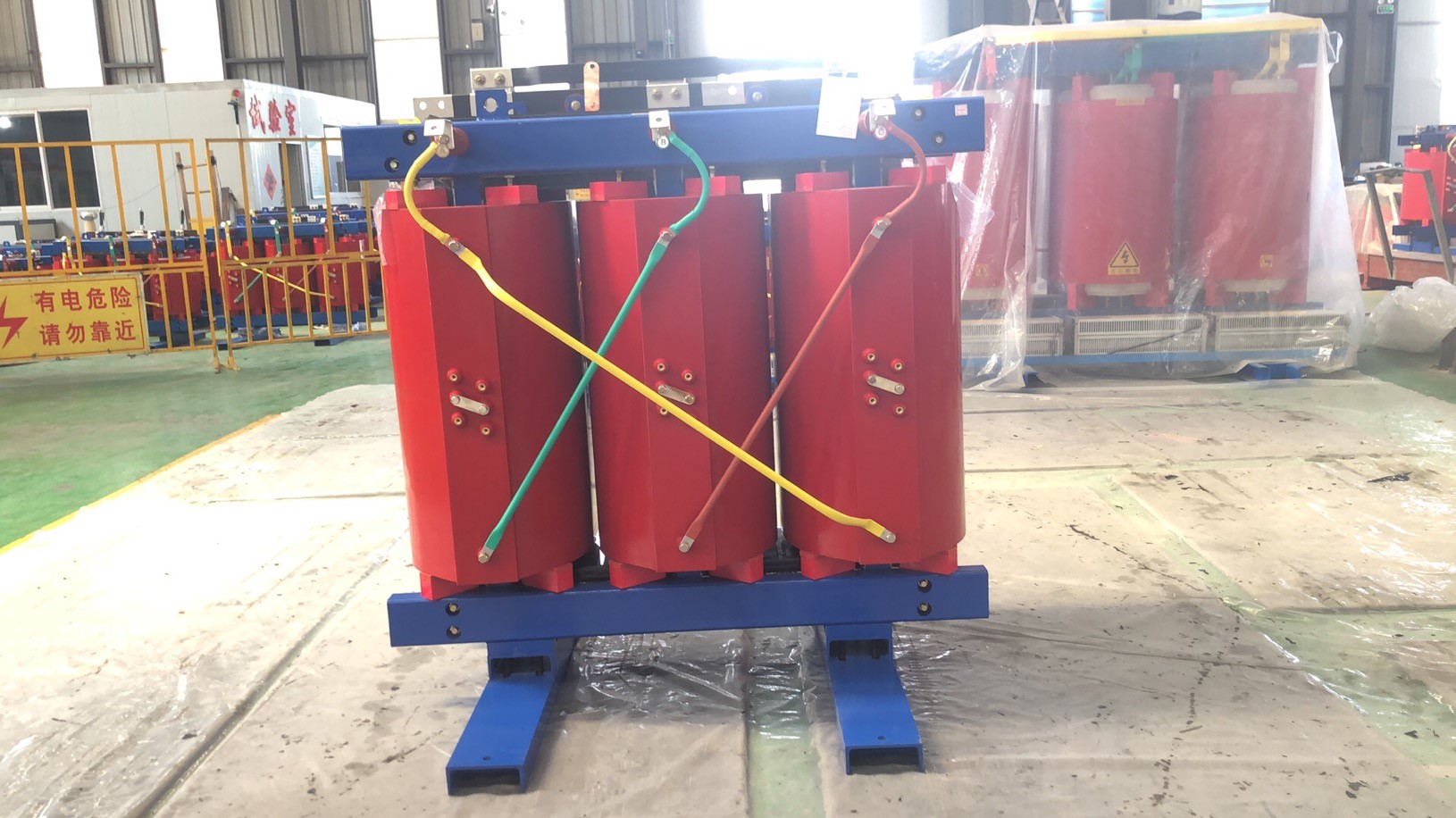

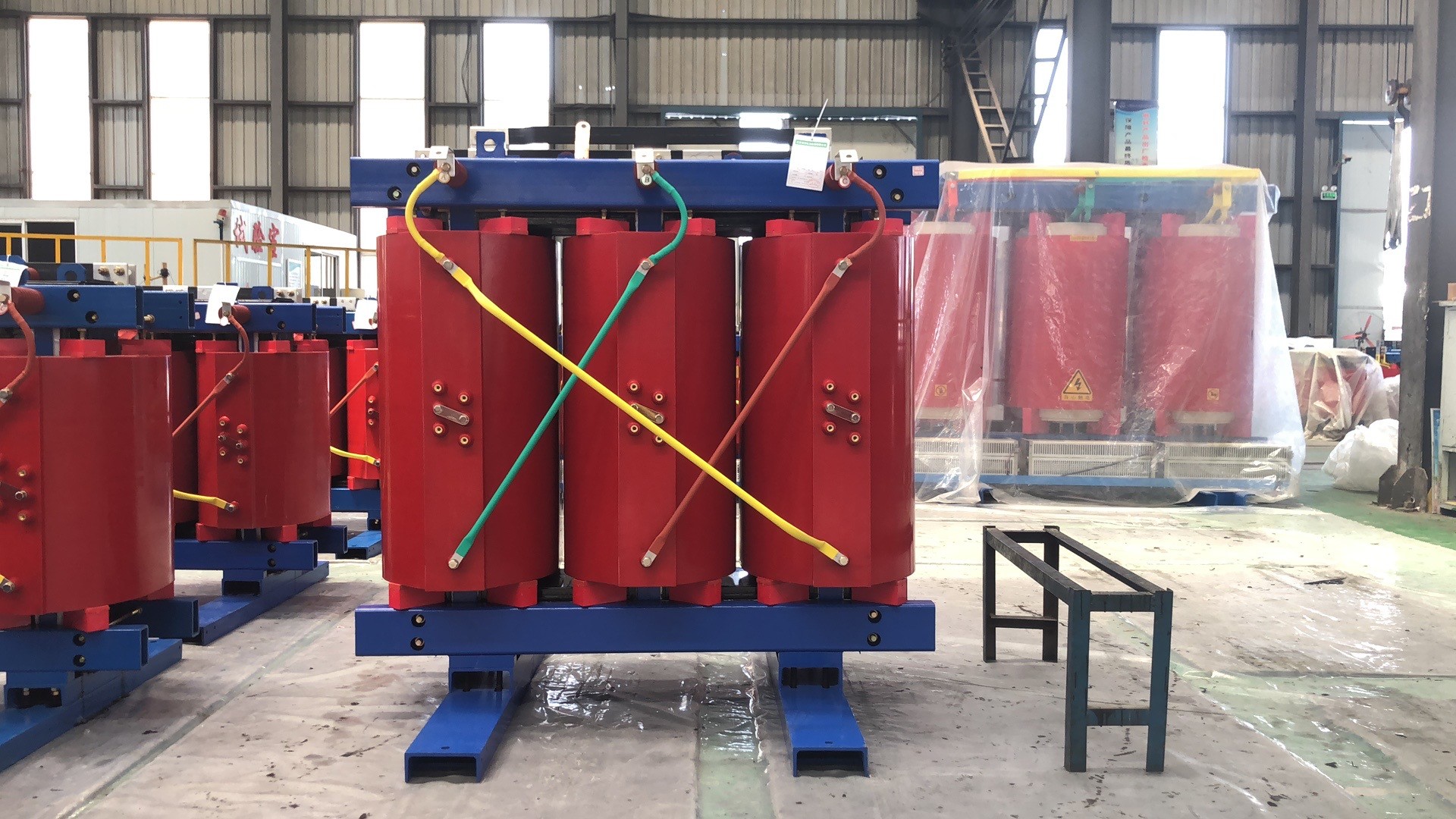

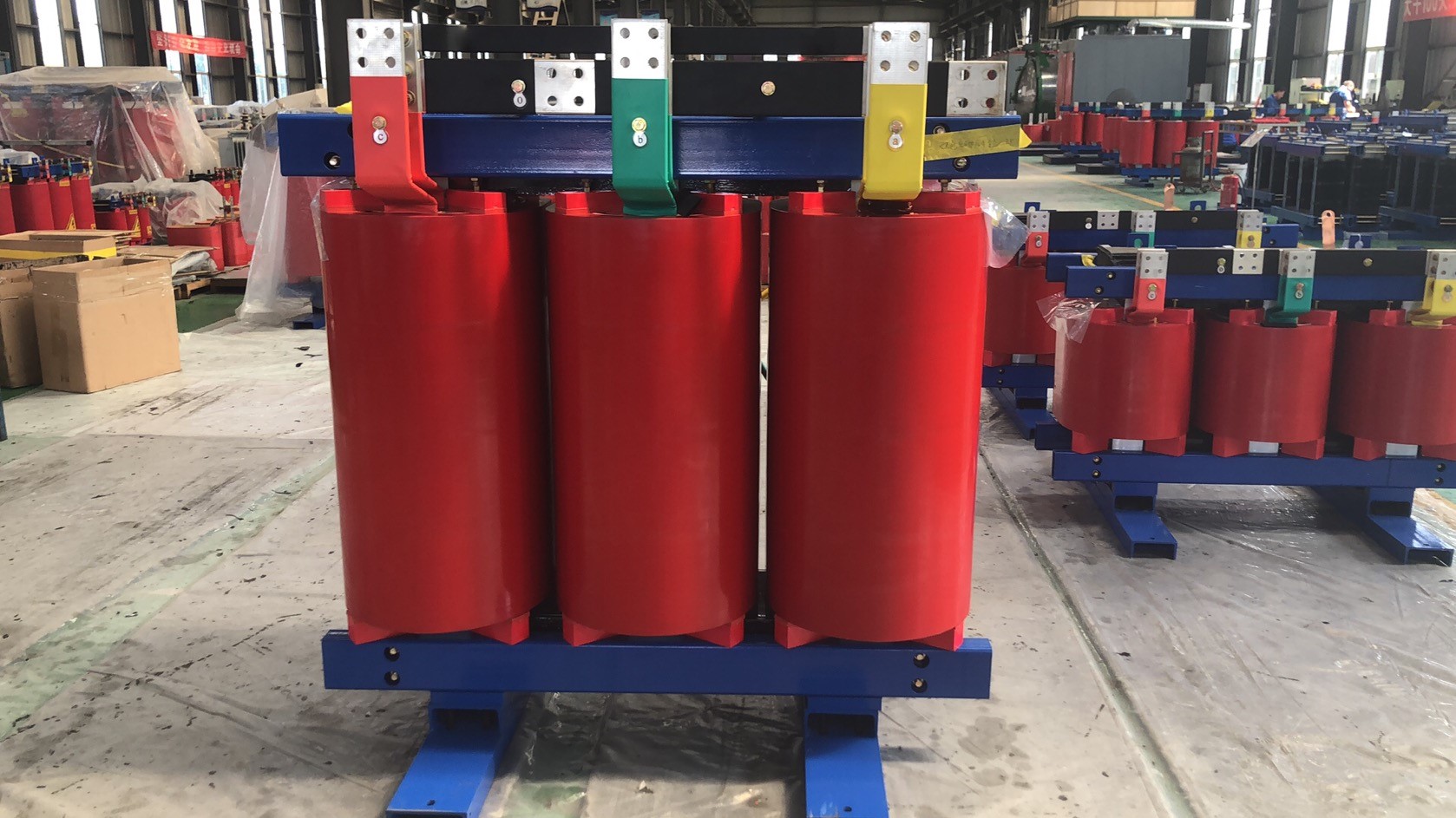

scb10-1600kVA Dry Type Transformer

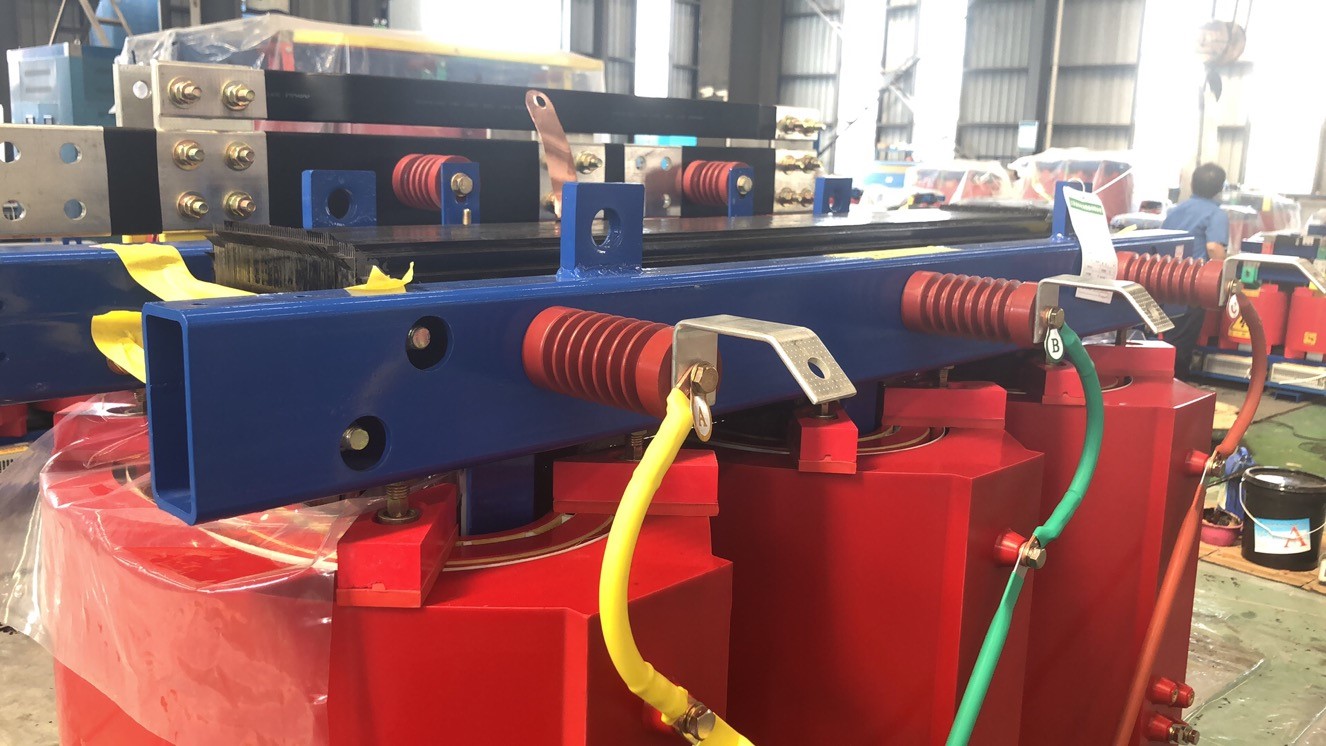

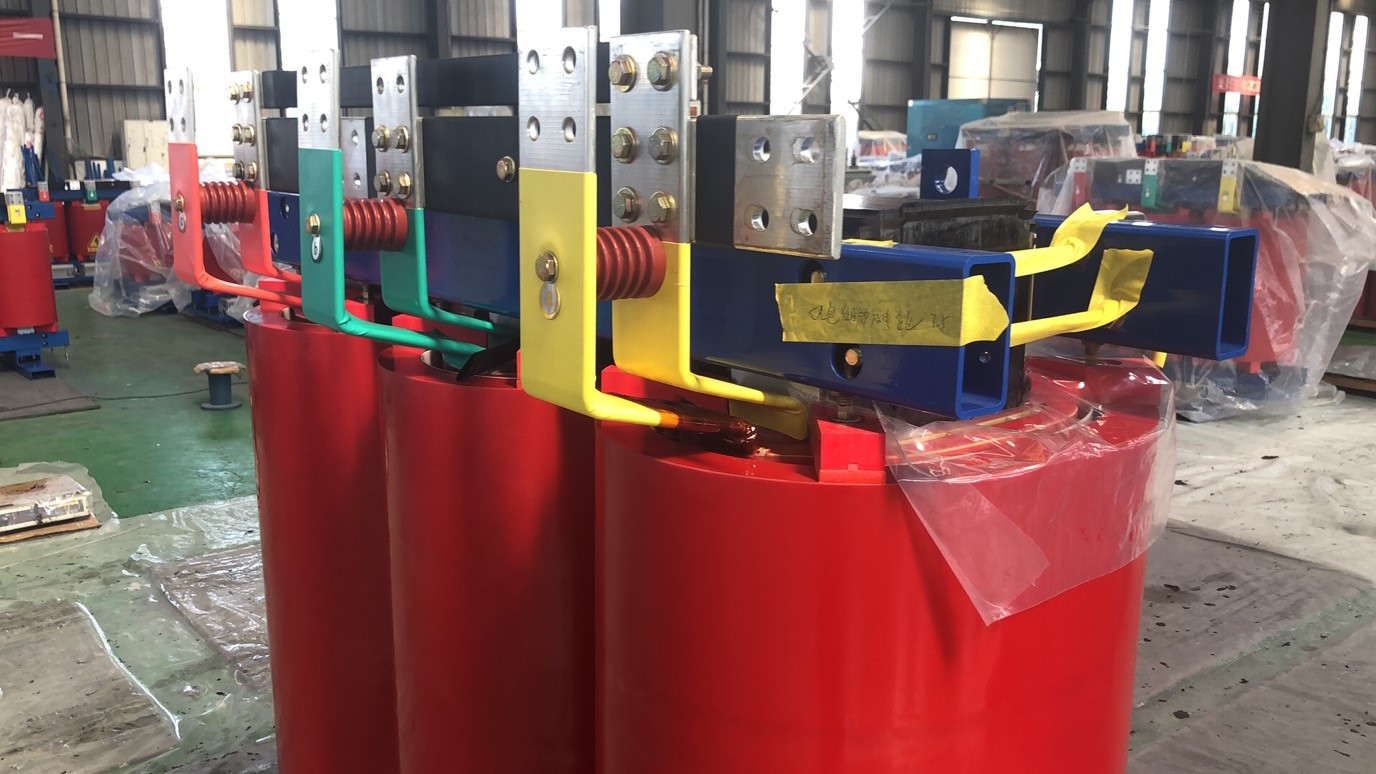

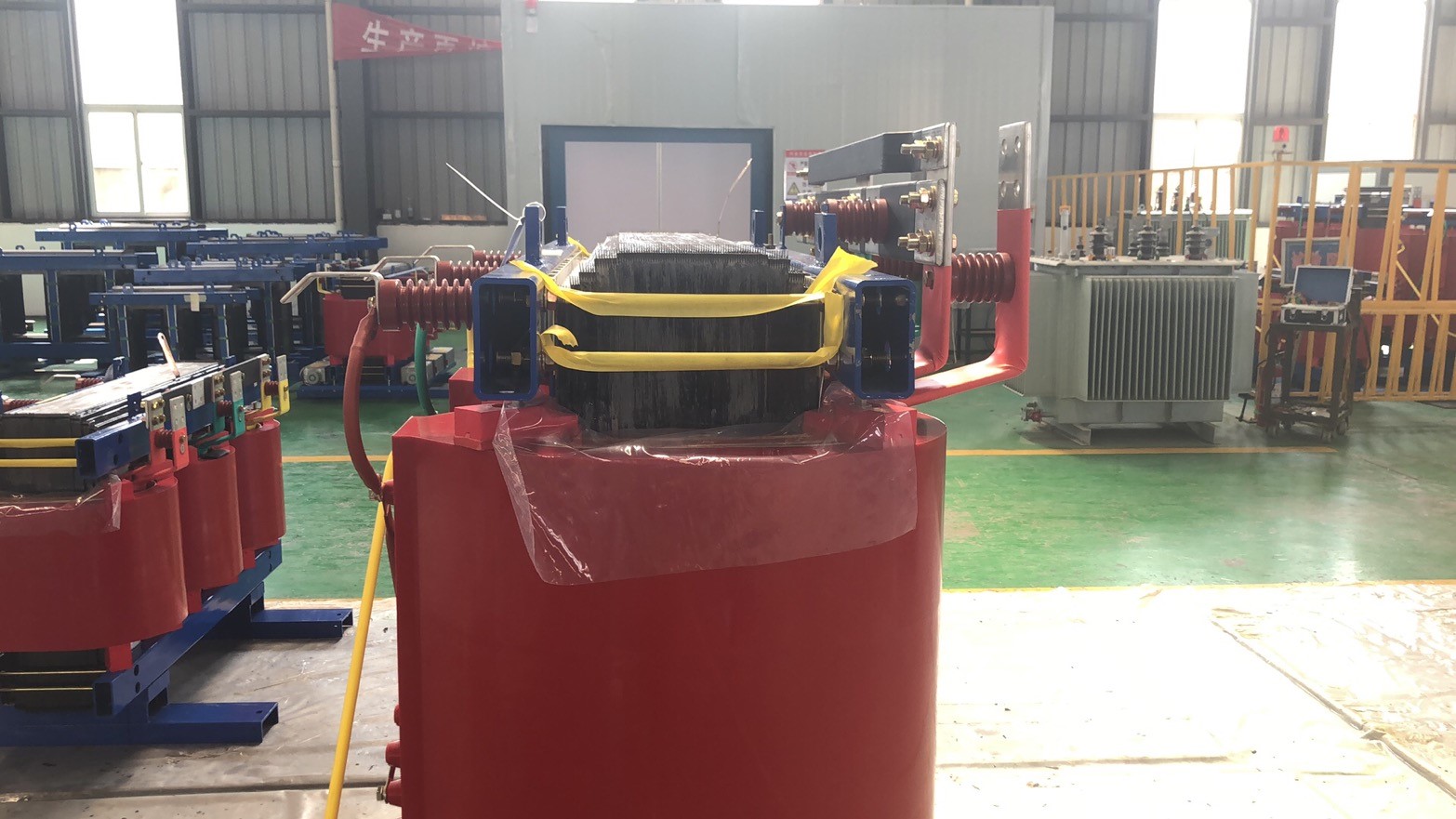

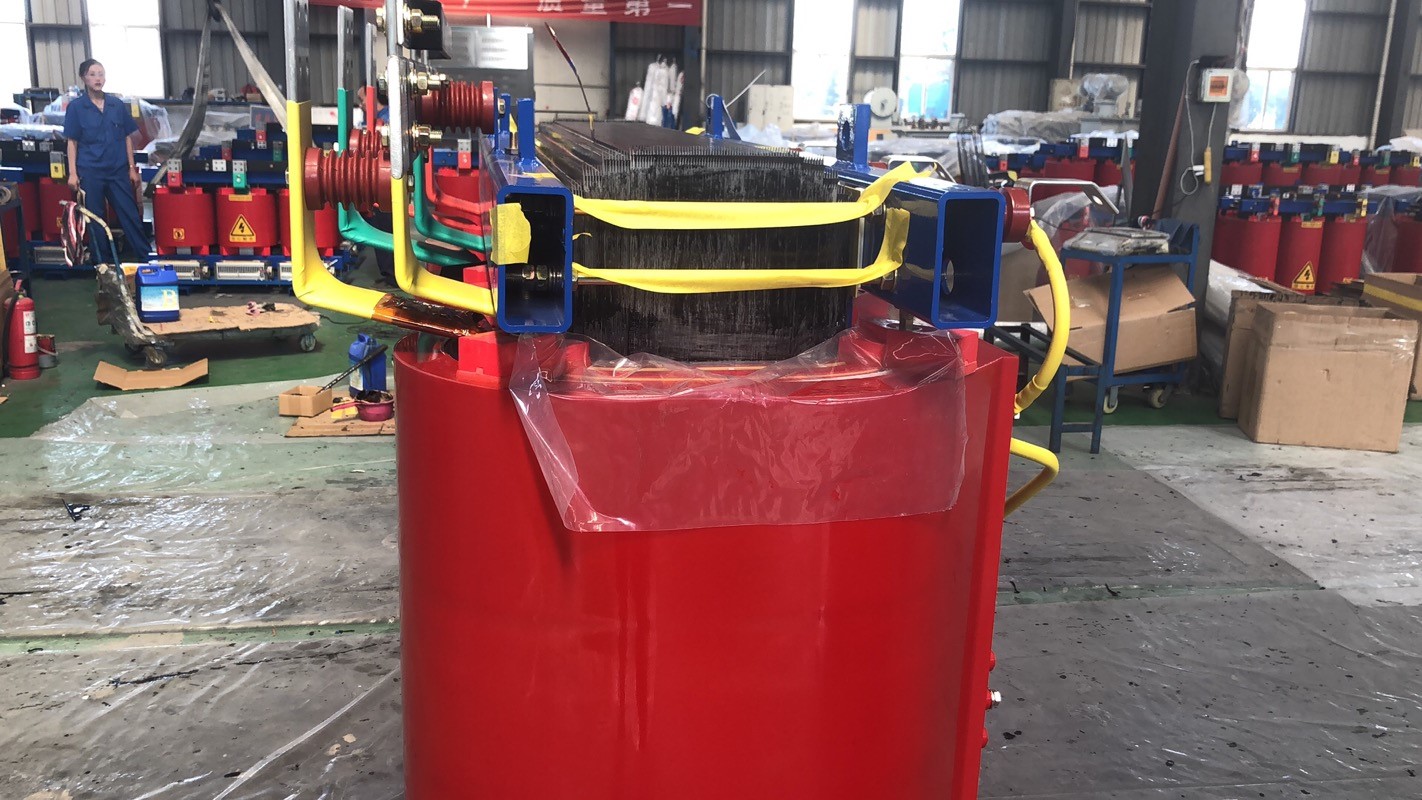

scb10-1600kva Dry Type TransformerAluminum Pending test ready for assembly

■Product Usage:

SCB10 dry-type transformer according to the standard "dry-type power transformer" manufacturing, this product performance loss is low, energy-saving effect is good, economic operation, maintenance-free. In addition to advanced process structure, high level of resistance to short-circuit, lightning impact, but also has the characteristics of blocking, moisture-proof, dust-proof, low noise, etc., can be deep load. Widely used in high-rise buildings, airports, stations, docks, power plants, substations, etc.. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.

The company produces the standard dry-type transformer without shell, protection level for IP00, such as customer needs can provide protection level for IP20 and IP23 shell. Shell can be selected according to customer requirements of ordinary steel plate, stainless steel plate, aluminum alloy and other materials, and for pickling, phosphating, spraying and other treatments. Temperature control display meter and load measuring and recording meter are installed in the low-voltage side of the shell, which is convenient for users to observe and reliable.

■Product Parameters:

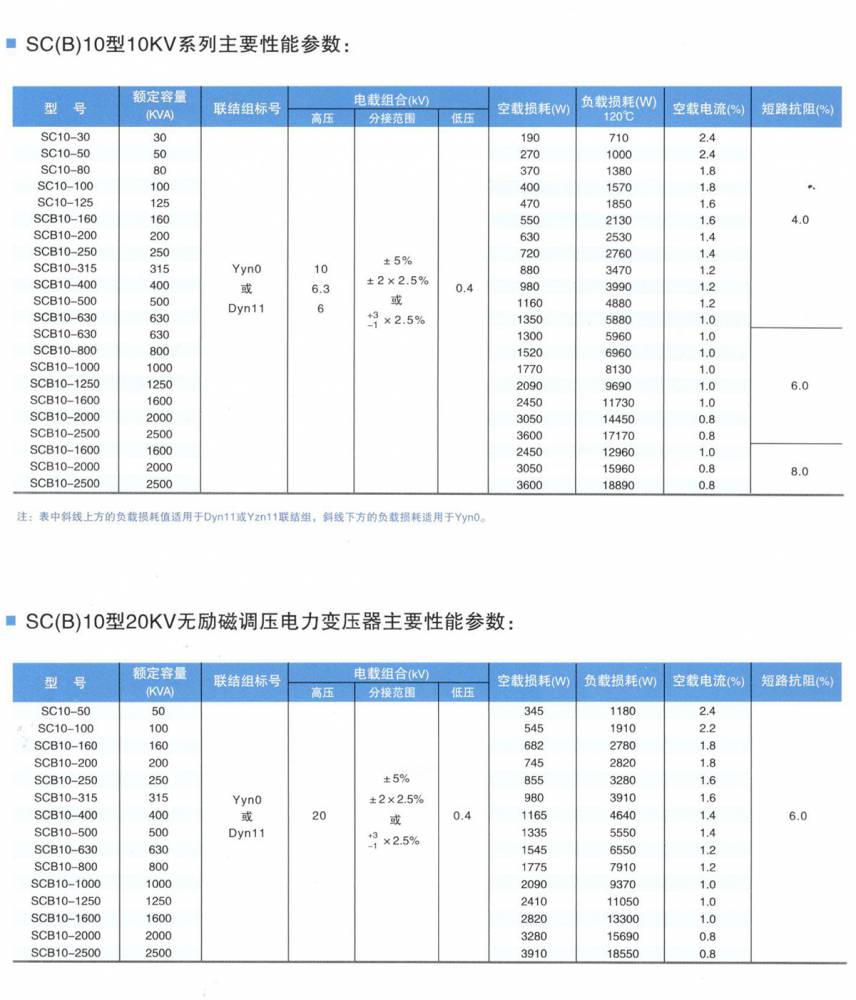

SCB10 Dry-type Transformer main performance parameters see table
Number of phases: 3-phase
Frequency: 50Hz
Insulation heat-resistant grade: F class
Average temperature rise of the winding: ≤ 100K
Partial discharge: less than 5pc
