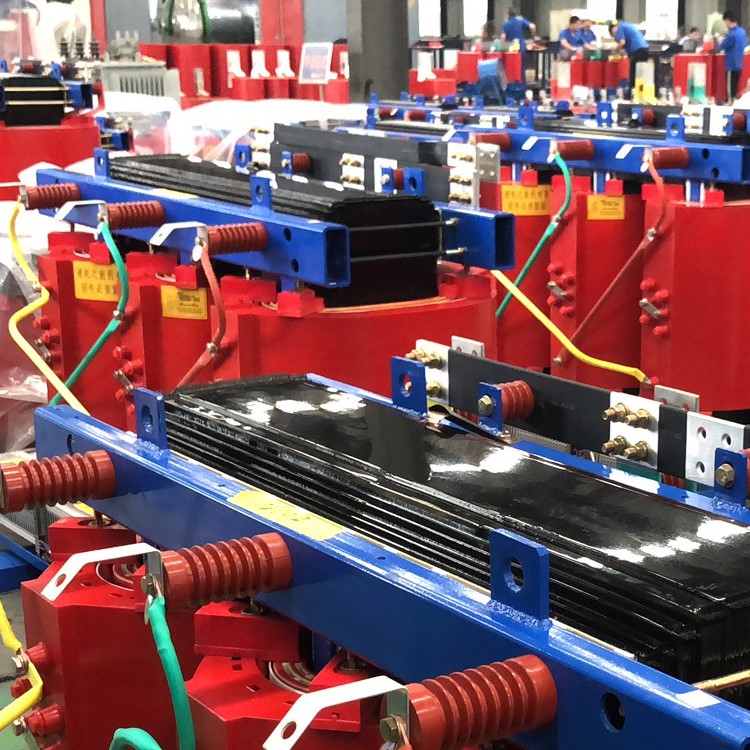

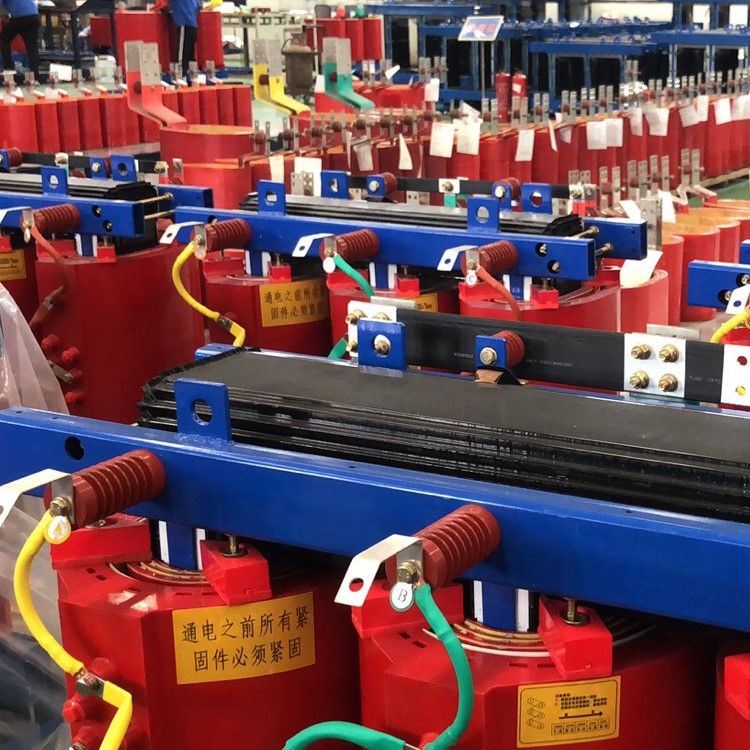

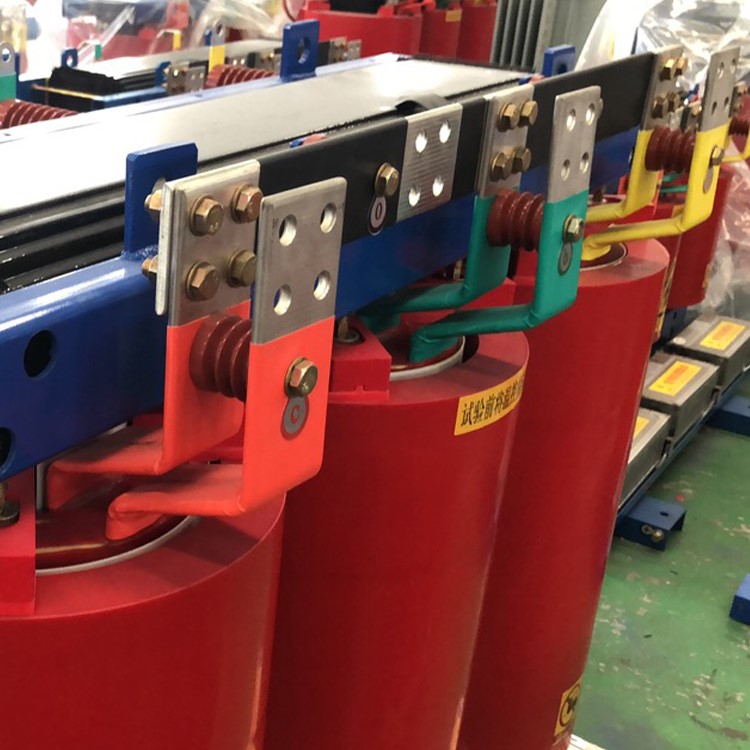

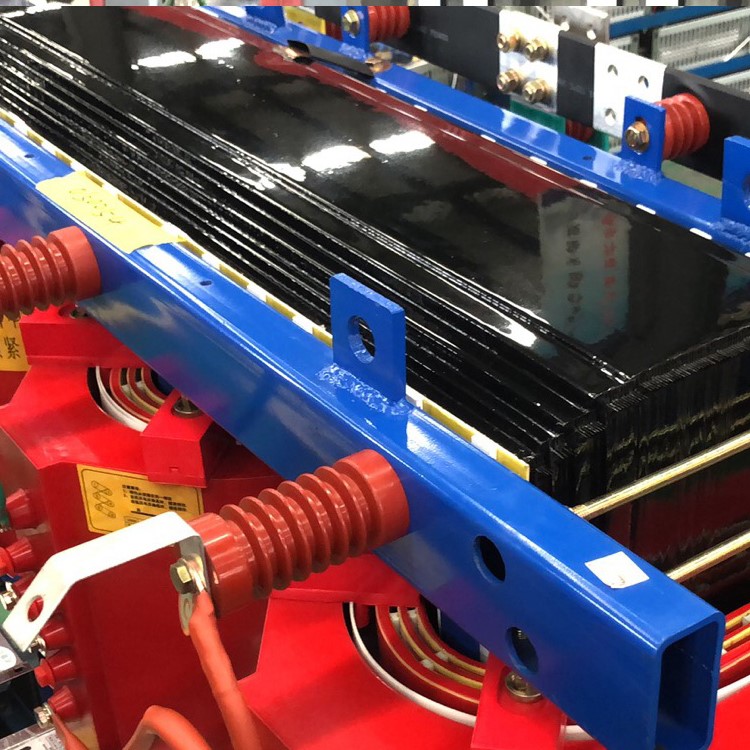

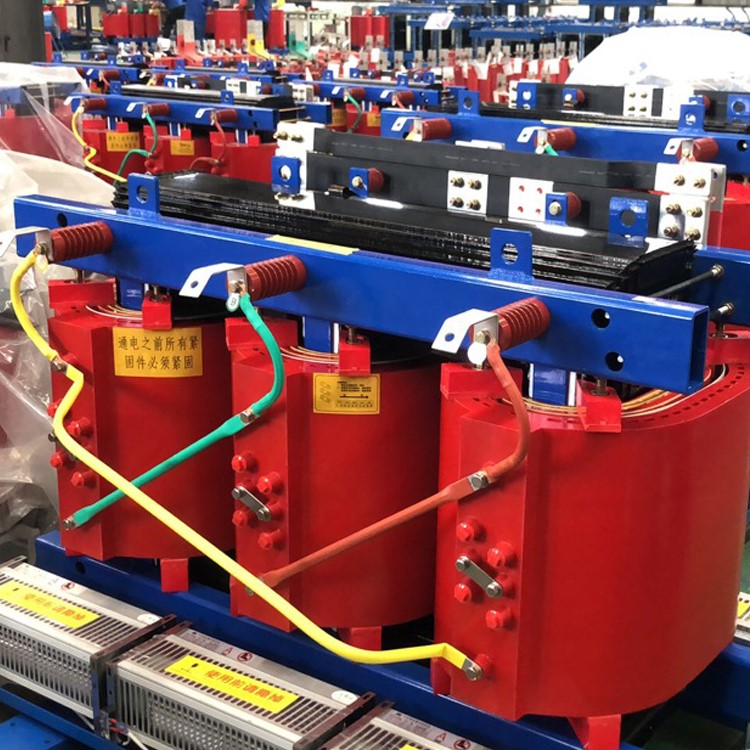

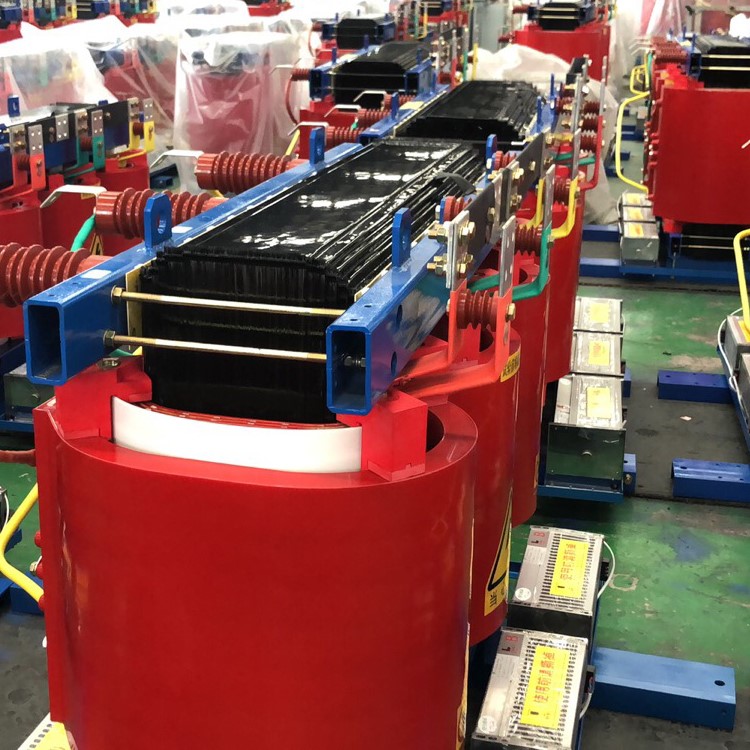

SCB10 Dry Type Transformer

■Product Overview:

The company produces scb10 dry-type transformer its performance index load various standards, by the user use proves that the operation is reliable, reach the national advanced level. This series of products adopts foreign advanced manufacturing technology, design drawings and technical documents are complete, correct, clear, advanced production equipment, manufacturing process is stable, measurement means complete, for the production of products provide a solid guarantee.

■Product Usage:

We produces scb10 dry-type transformer its performance index load various standards, by the user use proves that the operation is reliable, reach the national advanced level. This series of products adopts foreign advanced manufacturing technology, design drawings and technical documents are complete, correct, clear, advanced production equipment, manufacturing process is stable, measurement means complete, for the production of products provide a solid guarantee.

We produces the standard dry-type transformer without shell, protection level for IP00, such as customer needs can provide protection level for IP20 and IP23 shell. Shell can be selected according to customer requirements of ordinary steel plate, stainless steel plate, aluminum alloy and other materials, and for pickling, phosphating, spraying and other treatments. Temperature control display meter and load measuring and recording meter are installed in the low-voltage side of the shell, which is convenient for users to observe and reliable.

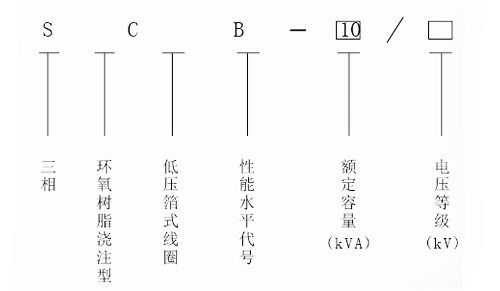

■Model Meaning:

■Product Parameters:

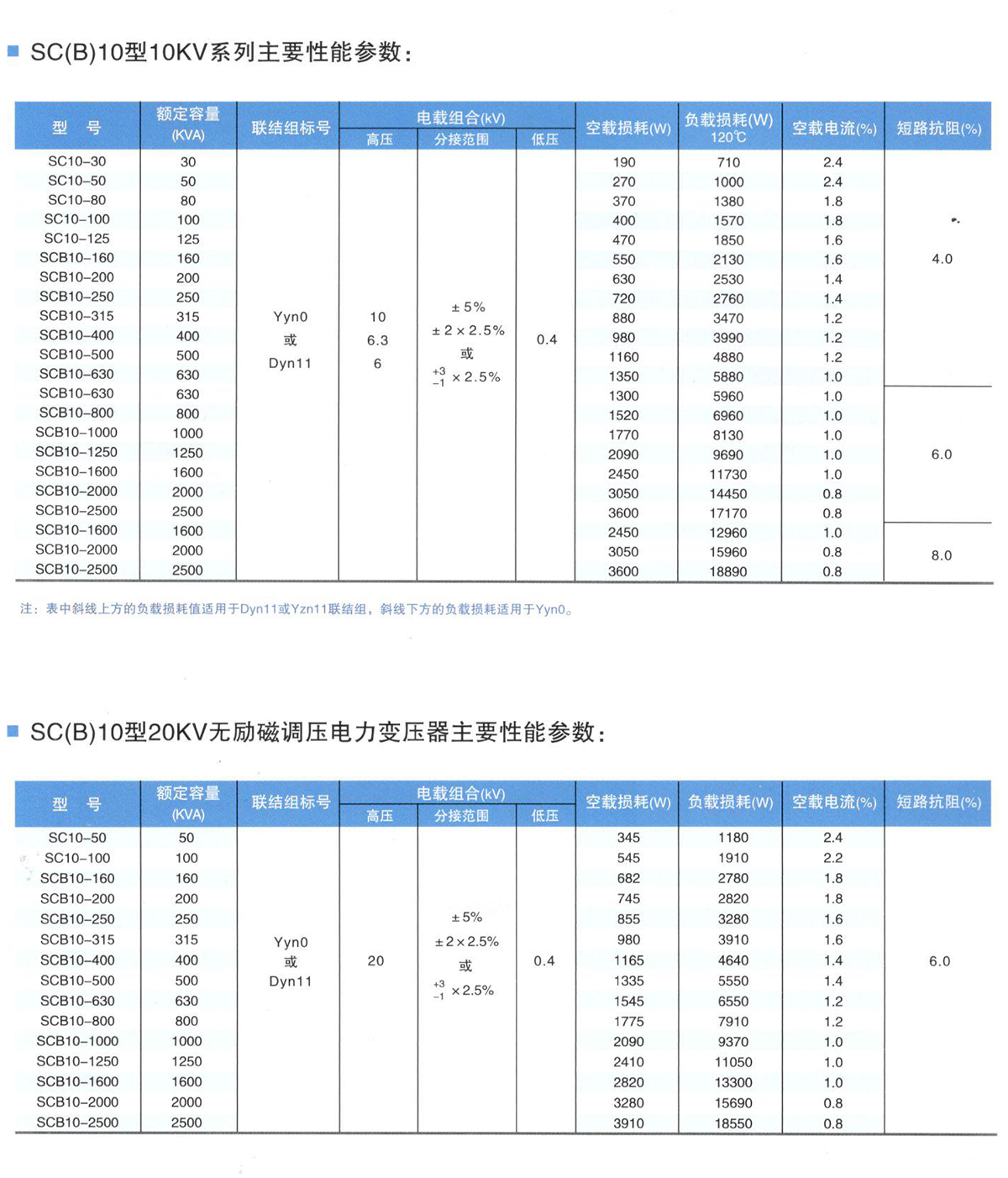

SC(B)10 Dry-type Transformer main performance parameters see table

Number of phases: 3-phase

Frequency: 50Hz

Insulation heat-resistant grade: F class

Average temperature rise of the winding: ≤ 100K

Partial discharge: less than 5pc
