Technical Parameters of The Transformer

发布时间：2024-06-19 点击次数：12602

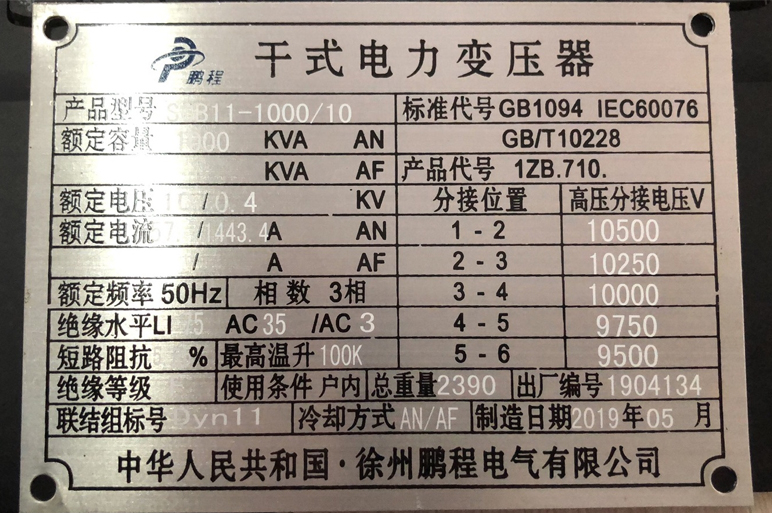

Specific technical data describing the overall performance of the transformer. They are the main basis for the production and use of the transformer, for requesting quotations and for placing orders. Transformer technical data are generally labeled on the nameplate. The main contents of the technical parameters are:

1, the number of phases and rated frequency

2, rated voltage and rated capacity

3, rated current

4, load loss and short circuit impedance

5, No-load current and no-load loss

6、Temperature rise and cooling mode

7、Insulation level

8, The winding of the linkage group labeling

变压器的技术参数

In addition, the nameplate is labeled with the name of the transformer, model, product code, standard code, weight, manufacturer's name, factory serial number, manufacturing year and month.
