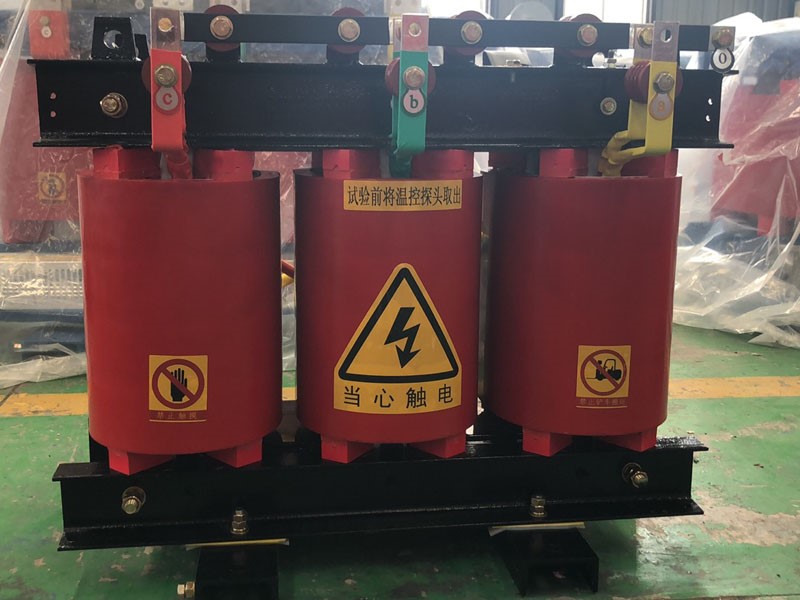

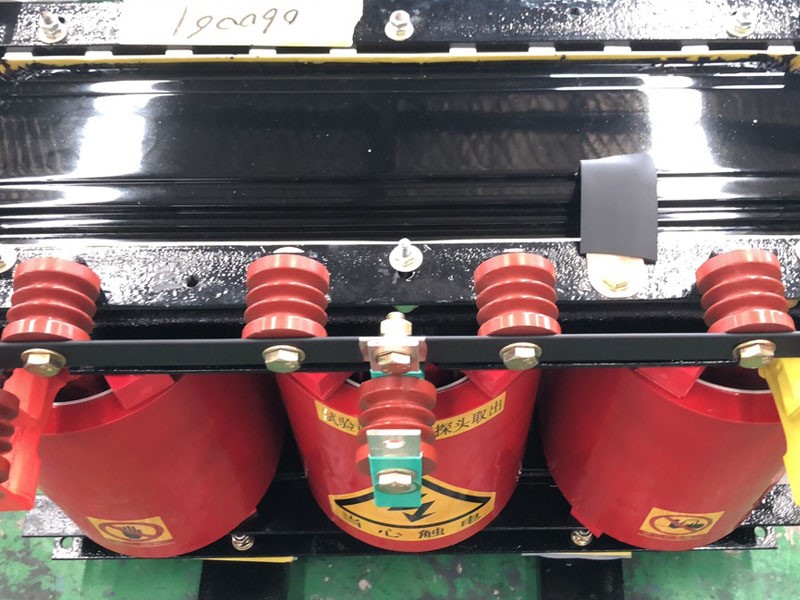

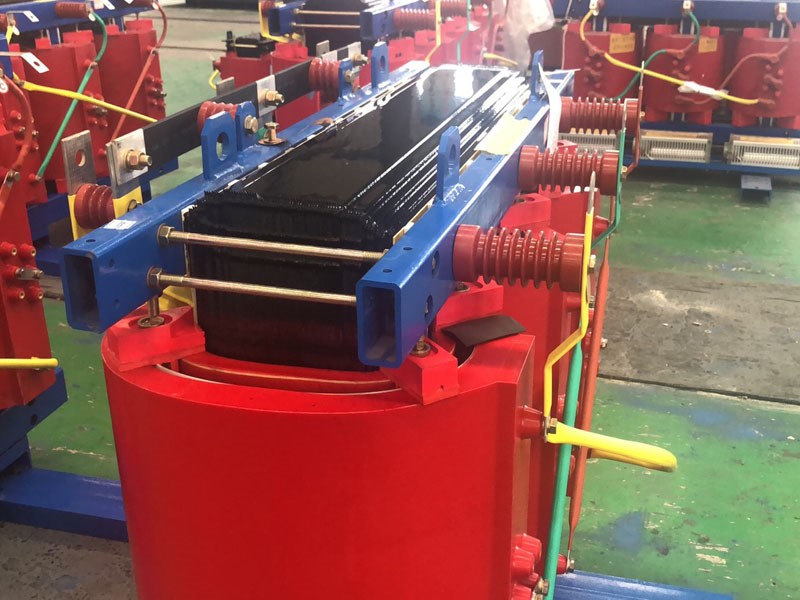

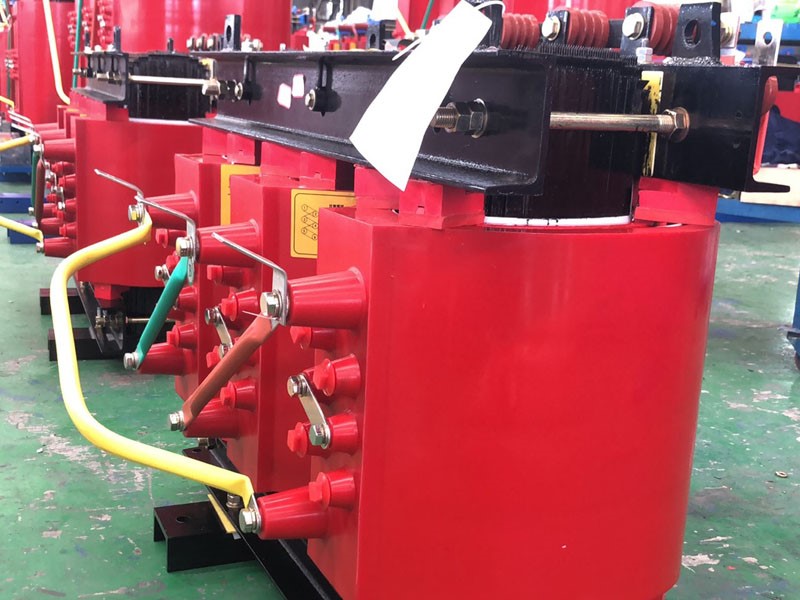

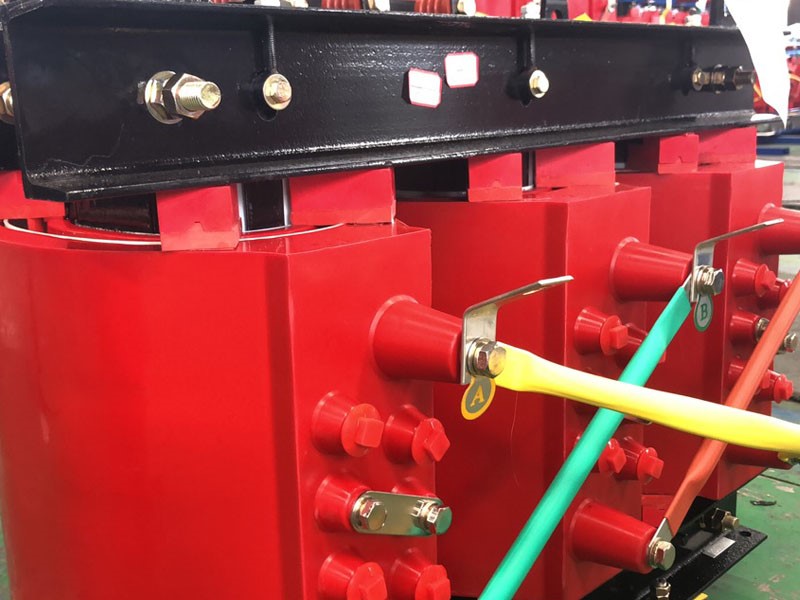

SCB10-100KVA Dry Type Power Transformer

■Product Usage:

SCB10-100KVA Dry Type Transformeraccording to the National Standard "Dry-type Power Transformer" manufacturing, this product performance loss is low, energy-saving effect is good, running economy, maintenance-free. In addition to advanced process structure, high level of resistance to short-circuit and lightning impact, it also has the characteristics of blocking, moisture-proof, dust-proof, low noise, etc. It can be deep loaded. Widely used in high-rise buildings, airports, stations, docks, power plants, substations, etc.. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.

We produces the standard SCB10-100KVA dry-type transformer without shell, protection level for IP00, such as customer needs can provide protection level for IP20 and IP23 shell. Shell can be selected according to customer requirements of ordinary steel plate, stainless steel plate, aluminum alloy and other materials, and for pickling, phosphating, plastic spraying and other treatments. Temperature control display meter and load measuring and recording meter are installed in the low-voltage side of the shell, which is convenient for users to observe and reliable.

■Performance Parameters:

SCB10-100KVA dry-type transformer main performance parameters see table
Number of phases: 3-phase
Frequency: 50Hz
Insulation heat-resistant grade: F class
Average temperature rise of the winding: ≤ 100K
Partial discharge: less than 5pc
