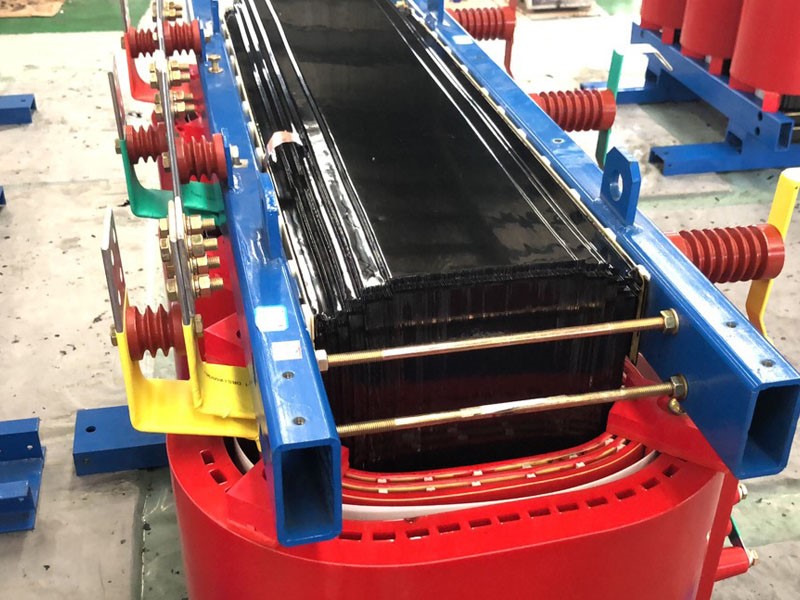

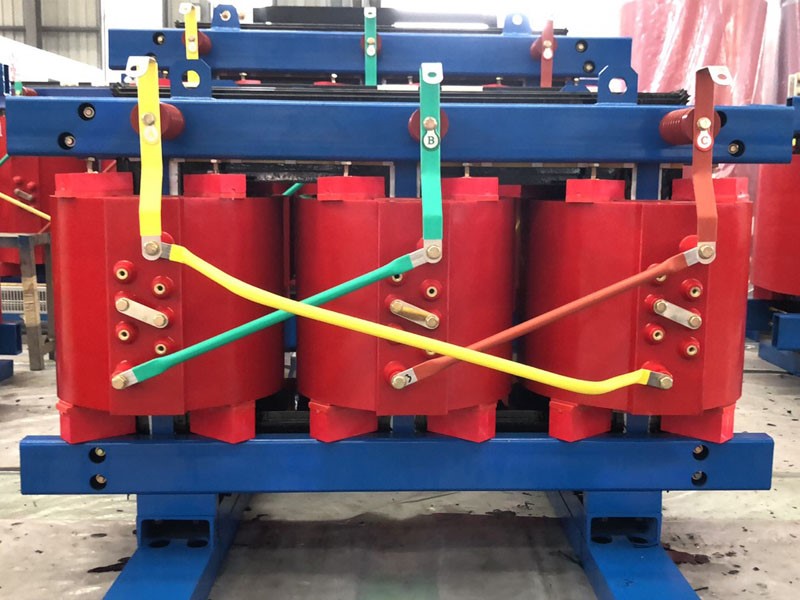

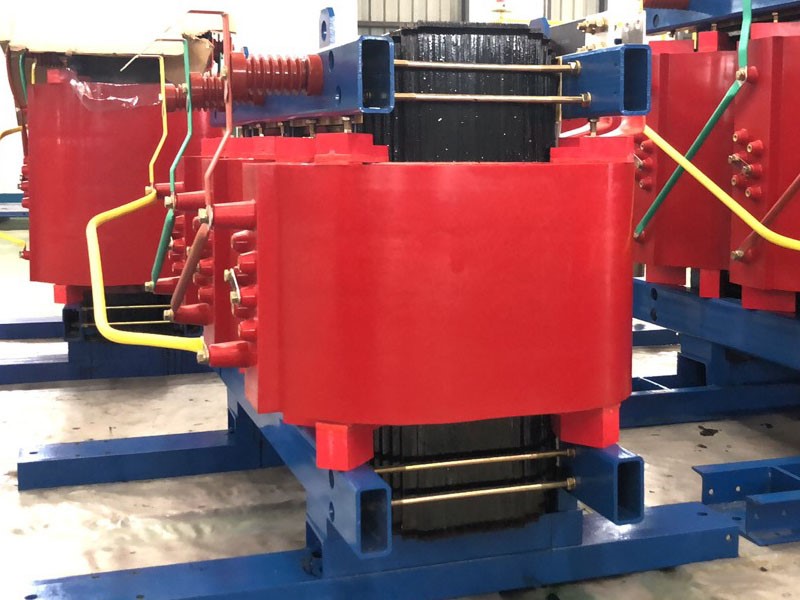

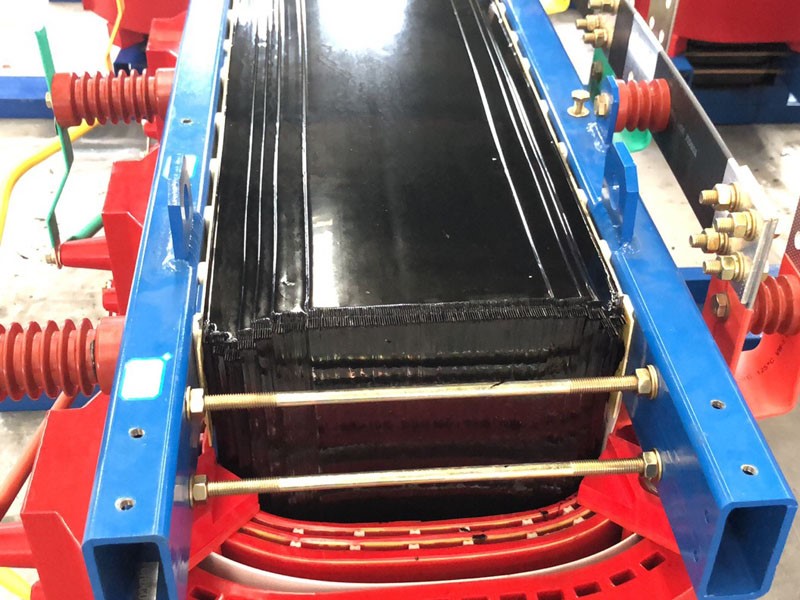

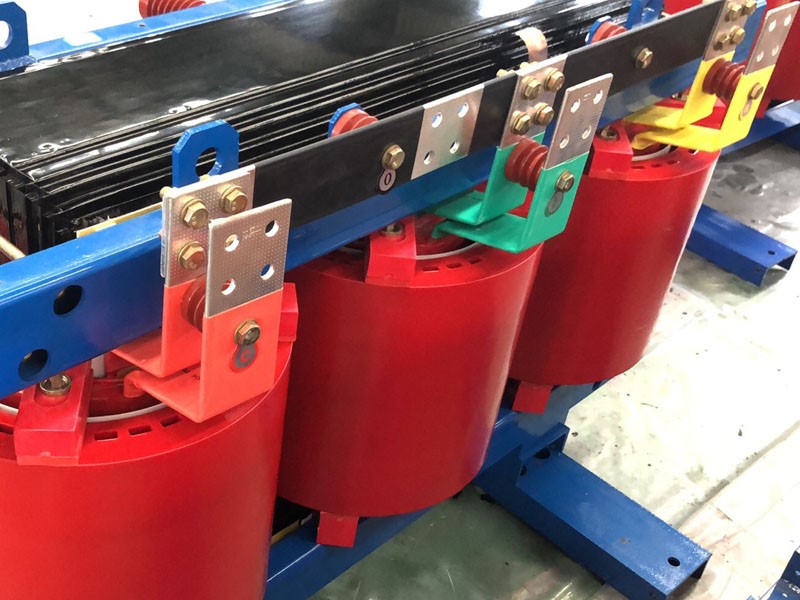

SCB10-800KVA Dry Type Copper Transformer

■Product Usage:
SCB10-800KVADry Type TransformerSCB10-800KVA dry-type transformer all-copper according to the standard "Dry-type Power Transformer" manufacturing, this product performance loss is low, energy-saving effect is good, running economy, maintenance-free. In addition to advanced process structure, high level of resistance to short-circuit, lightning impact, but also has the characteristics of blocking, moisture-proof, dust-proof, low noise, etc., can be deep load. Widely used in high-rise buildings, airports, stations, docks, power plants, substations, etc.. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.
Our company produces the standard type SCB10-800KVA dry-type transformer is without shell, protection level for IP00, such as customer needs can provide protection level for IP20 and IP23 shell. Shell can be selected according to customer requirements of ordinary steel plate, stainless steel plate, aluminum alloy and other materials, and for pickling, phosphating, spraying and other treatments. Temperature control display meter and load measuring and recording meter are installed in the low-voltage side of the shell, which is convenient for users to observe and reliable.

■Product Parametets

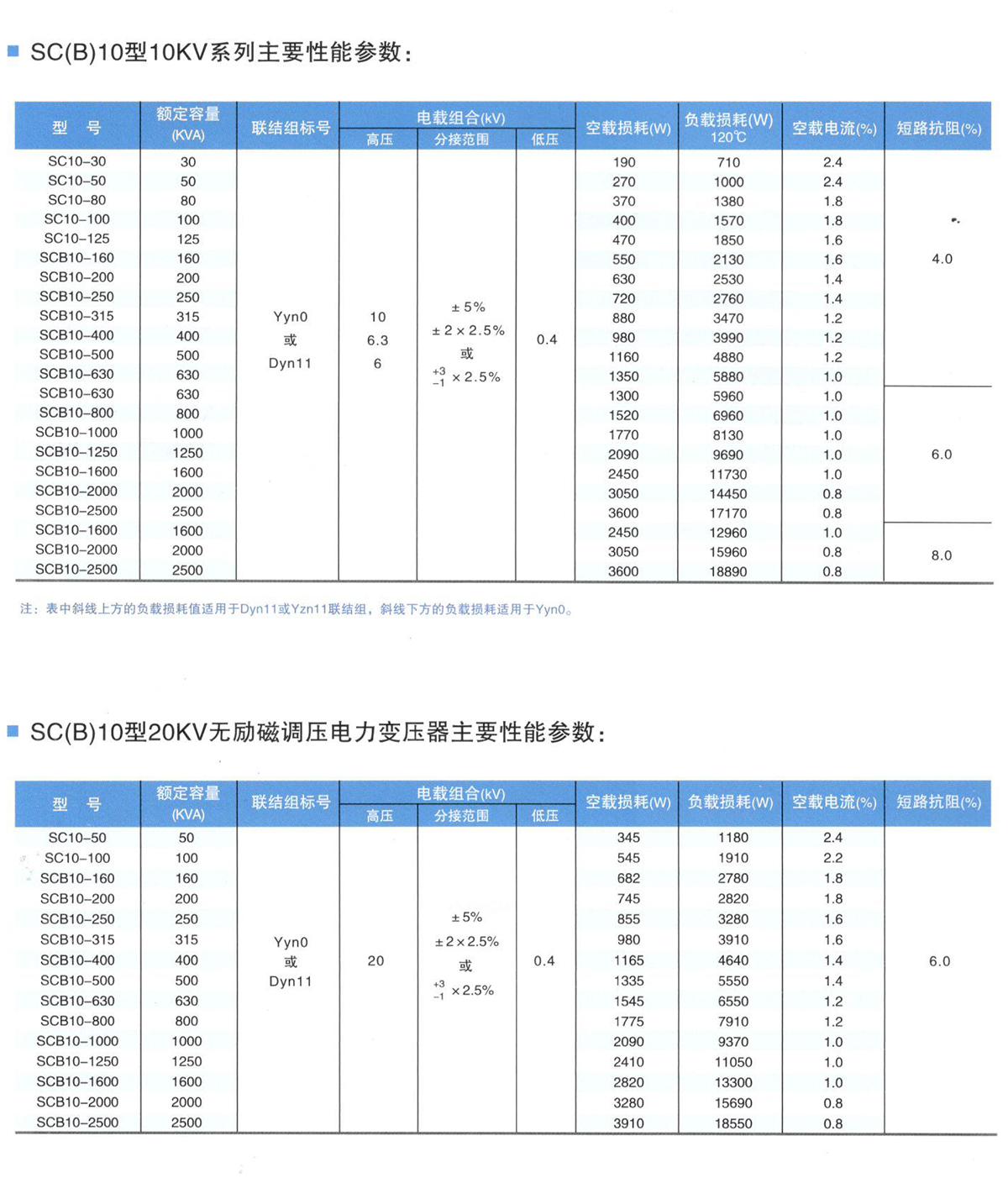

SCB10-800KVA Dry Type Transformer主要性能参数见表
Number of phases: 3 phases
Frequency: 50Hz
Insulation heat-resistant grade: F class
Average temperature rise of winding: ≤100K
Partial discharge: less than 5pc

■Model Number Meaning:
